Sable V6-3.0L DOHC VIN S (2002)
Camshaft: Service and Repair
RH
Camshafts RH
Removal
1. Remove the timing drive components.
2. CAUTION: Record the camshaft bearing cap location. The camshaft bearing caps are positional and must be installed in their original locations
and orientations or engine damage can occur.

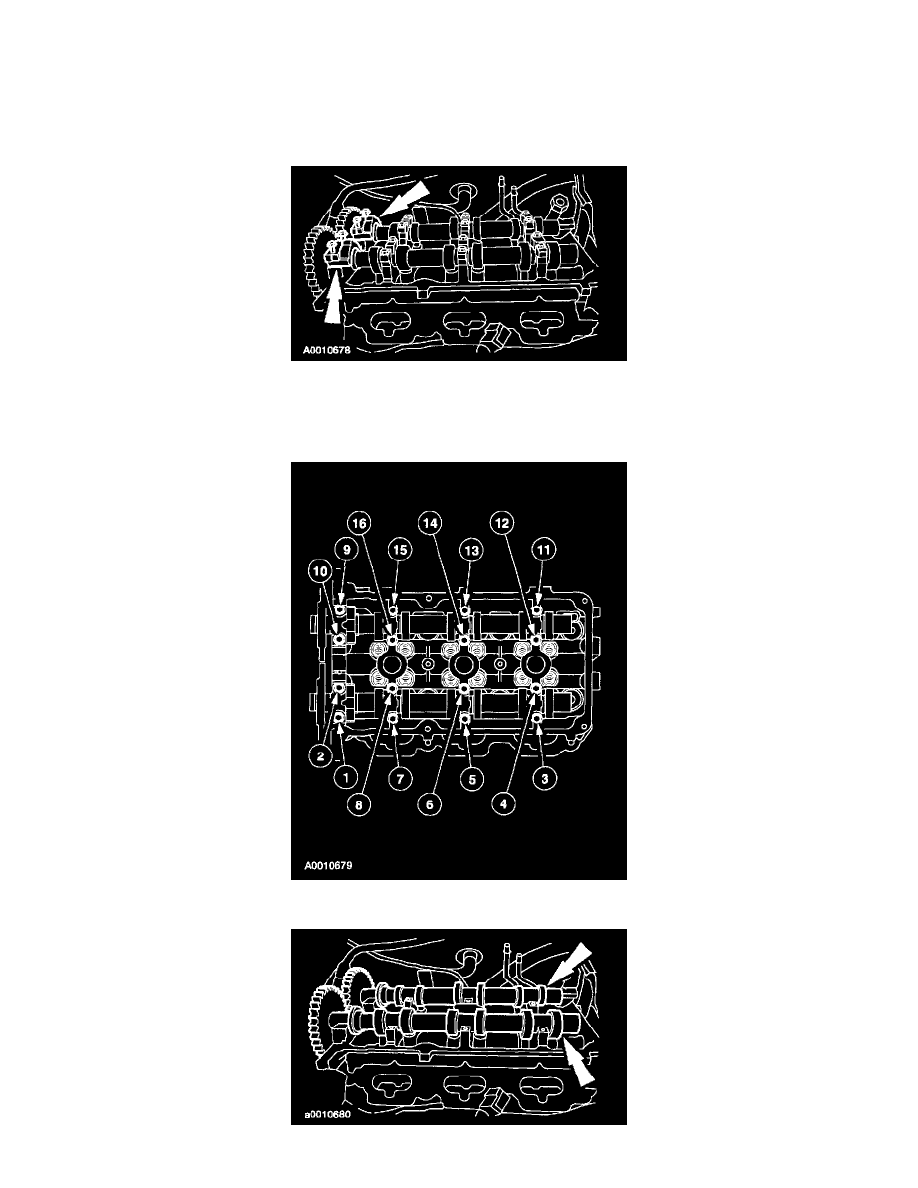

Loosen the bolts for the RH camshaft thrust caps.
3. Loosen the RH camshaft cap bolts in sequence to allow the camshafts to rise from the cylinder head and remove the caps.
