Sable V6-3.0L DOHC VIN S (2002)
Drive Belt Tensioner: Service and Repair
Belt Tensioner
Accessory Drive Belt Tensioner
Removal and Installation

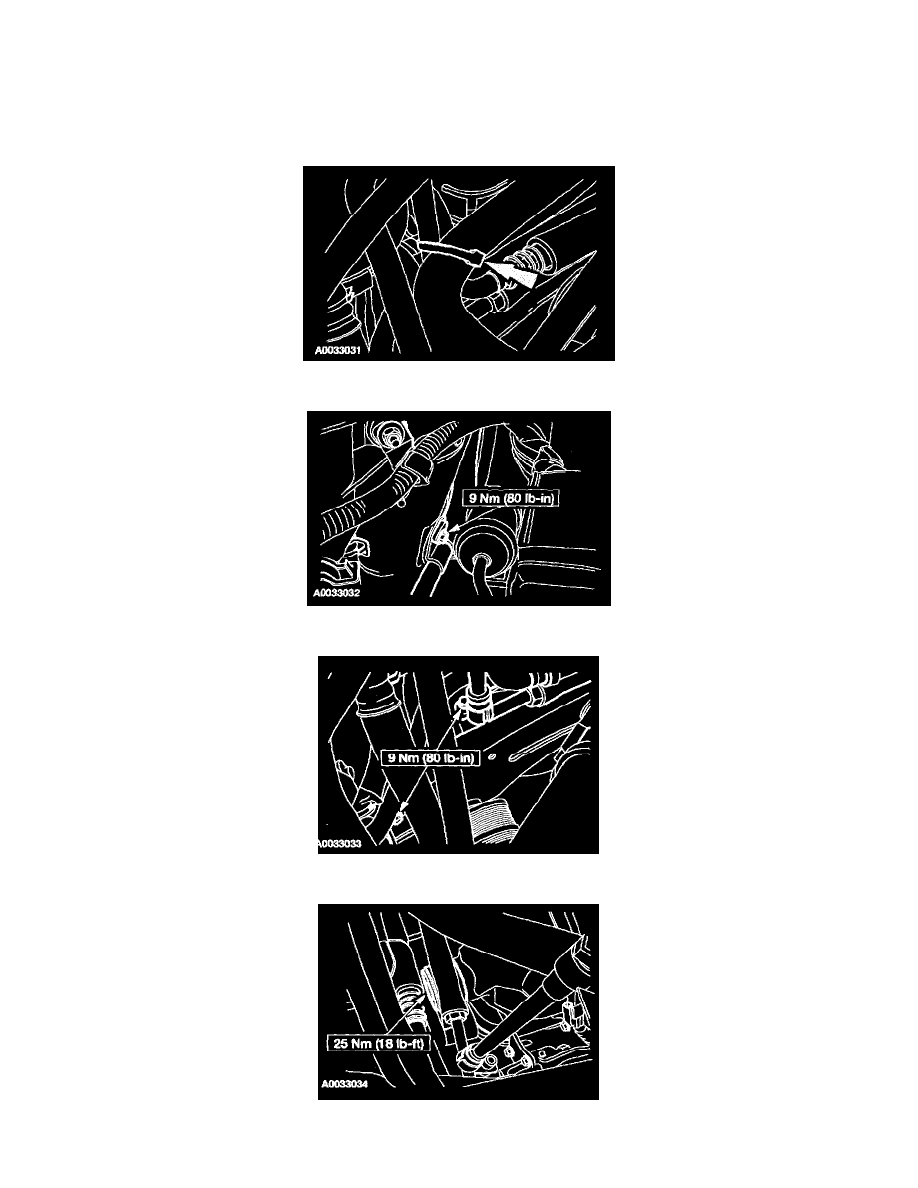

1. Remove the accessory drive belt.
2. Remove the tie stray from the power steering hose.
3. Remove the retaining nut and position the A/C low pressure hose out of the way.
4. Remove the bolts and position the A/C high pressure hose on top of the belt tensioner.
5. Remove the bolt and the accessory drive belt tensioner.
6. To install, reverse the removal procedure.
