Sable V6-3.0L DOHC VIN S (2002)
Intake Manifold: Service and Repair
Upper Intake Manifold
Upper Intake Manifold
Removal

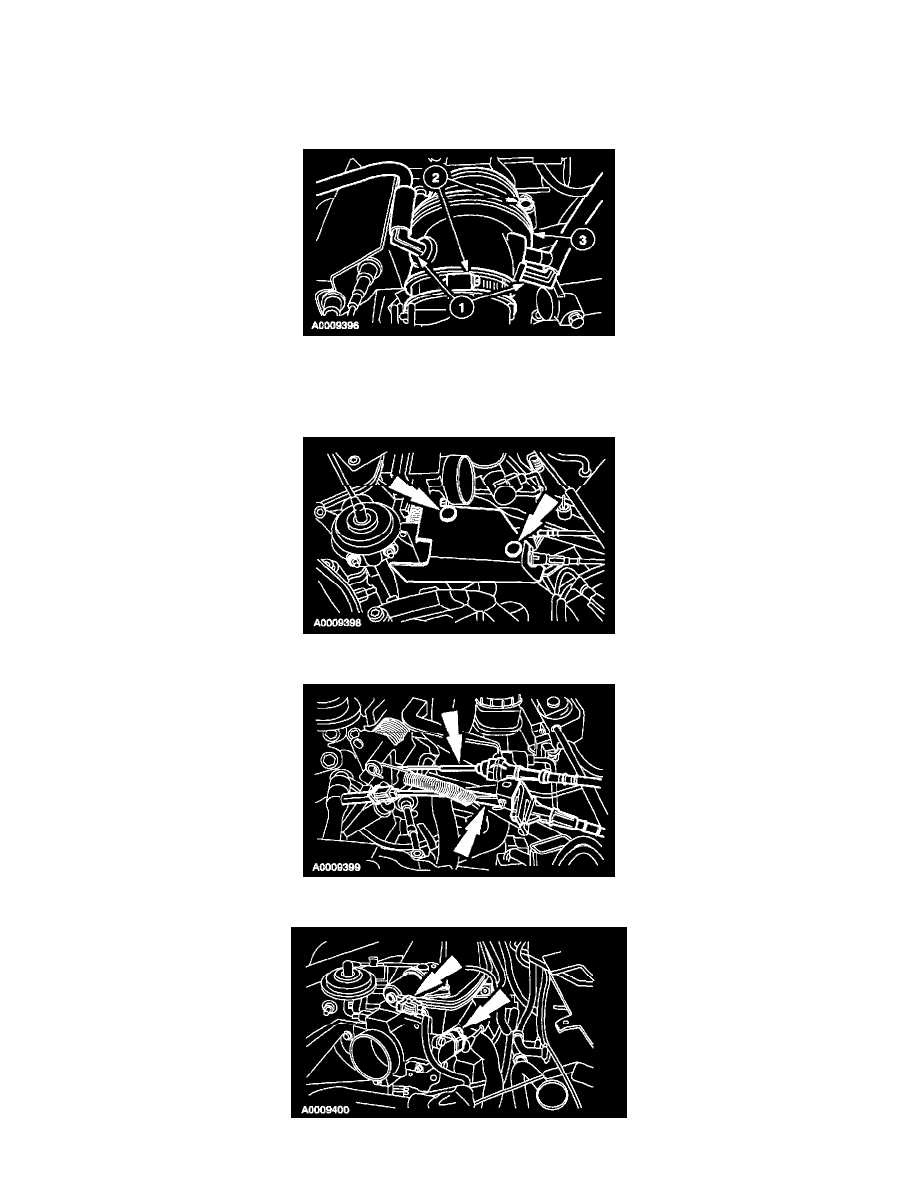

1. Remove the air cleaner outlet tube.
1
Remove the hoses.
2
Loosen the clamps.
3
Remove the air cleaner outlet tube.
2. Remove the pin-type retainers and the accelerator cable splash shield.
3. Disconnect the throttle cable and the cruise control cable.
