Sable V6-3.0L DOHC VIN S (2002)

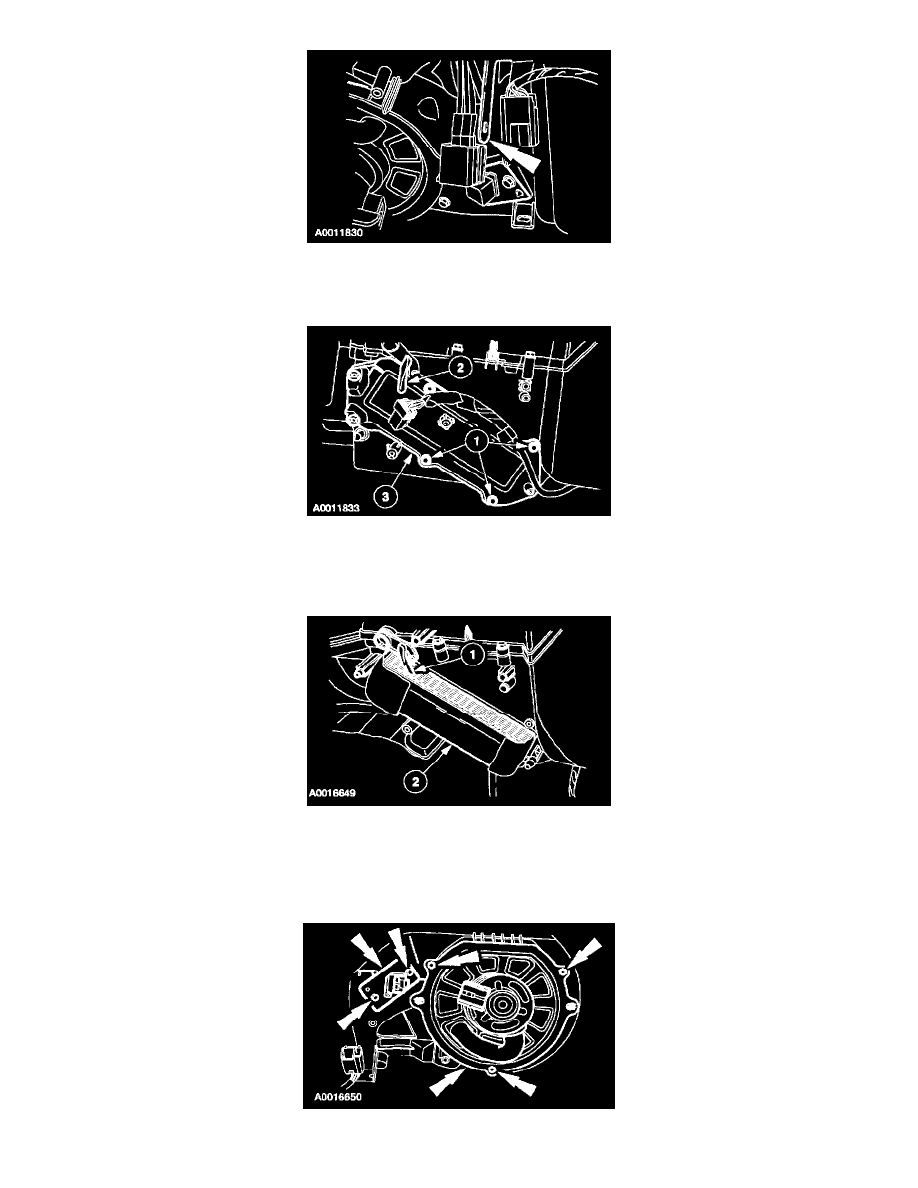

9. Detach the vacuum harness from the mounting bracket.
All vehicles
10. Remove the heater core cover.
1
Remove the screws.
2
Rotate the temperature blend door.
3
Remove the heater core cover and seal.
11. Remove the heater core.
1
Rotate the temperature blend door.
2
Remove the heater core.
Vehicles with manual climate control
12. Remove the screws and the blower motor. Remove the screws and the blower motor resistor.
