Sable V6-3.0L DOHC VIN S (2002)

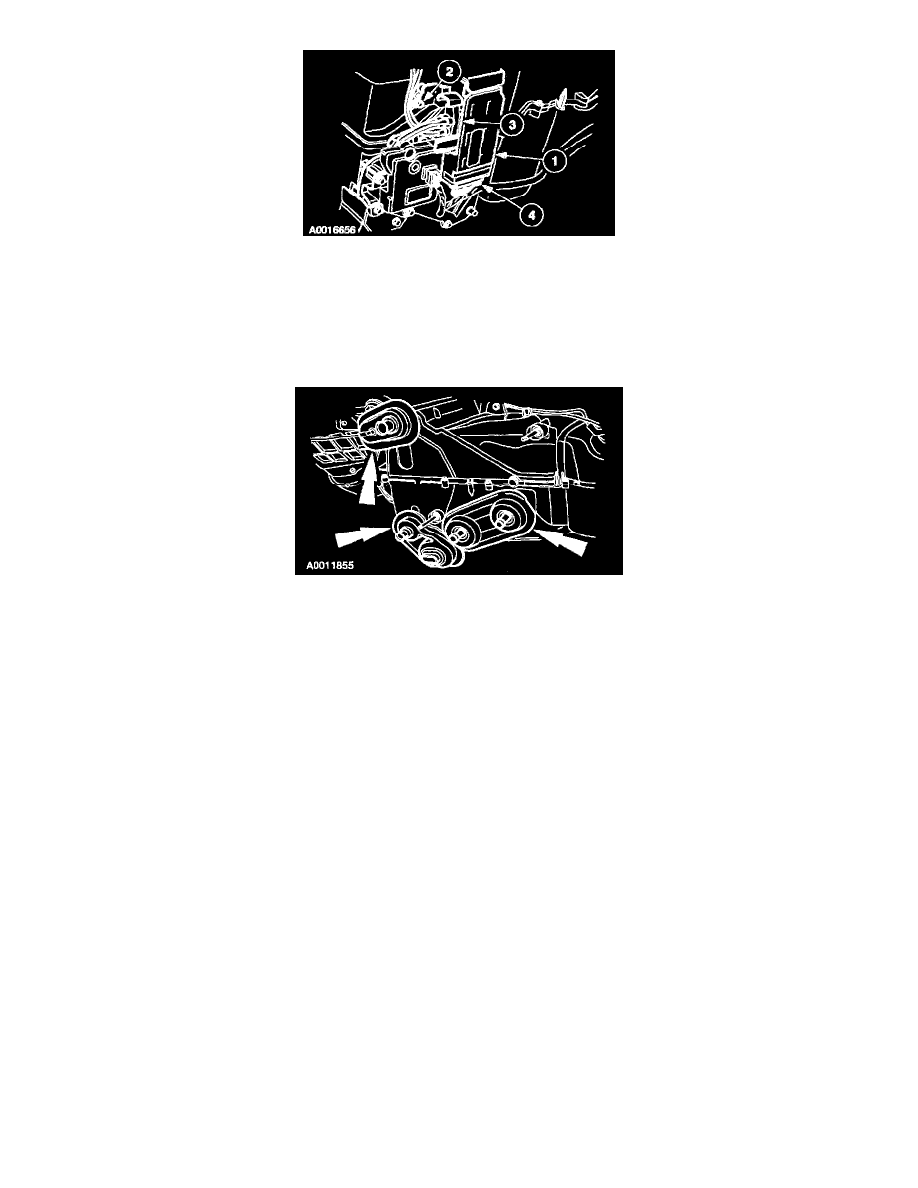

17. Install the RCC module.
1
Install the RCC module.
2
Install the two screws.
3
Connect the vacuum harness. Install the two nuts.
4
Connect the RCC module electrical connector.
All vehicles
18. Install the heater-to-dash panel seal, the air conditioner tubes-to-dash panel seal, and the air conditioner evaporator drain tube seal.
19. Install the heater core and evaporator core housing. Refer to: Heating and Air Conditioning, Housing Assembly HVAC, Service and Repair,
Removal and Installation, See: Housing Assembly HVAC/Service and Repair/Remove and Installation
