Sable V6-3.0L DOHC VIN S (2002)
Housing Assembly HVAC: Service and Repair
Remove and Installation
Heater Core and Evaporator Core Housing
REMOVAL
1. Prepare the vehicle for heater core and evaporator core housing removal.
1
Recover the refrigerant. Refer to: Heating and Air Conditioning, Service and Repair, Refrigerant Discharging and Recovery
Procedure, See: Service and Repair/Refrigerant Discharging and Recovery procedure
2
Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal
and Installation, See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removal and Installation

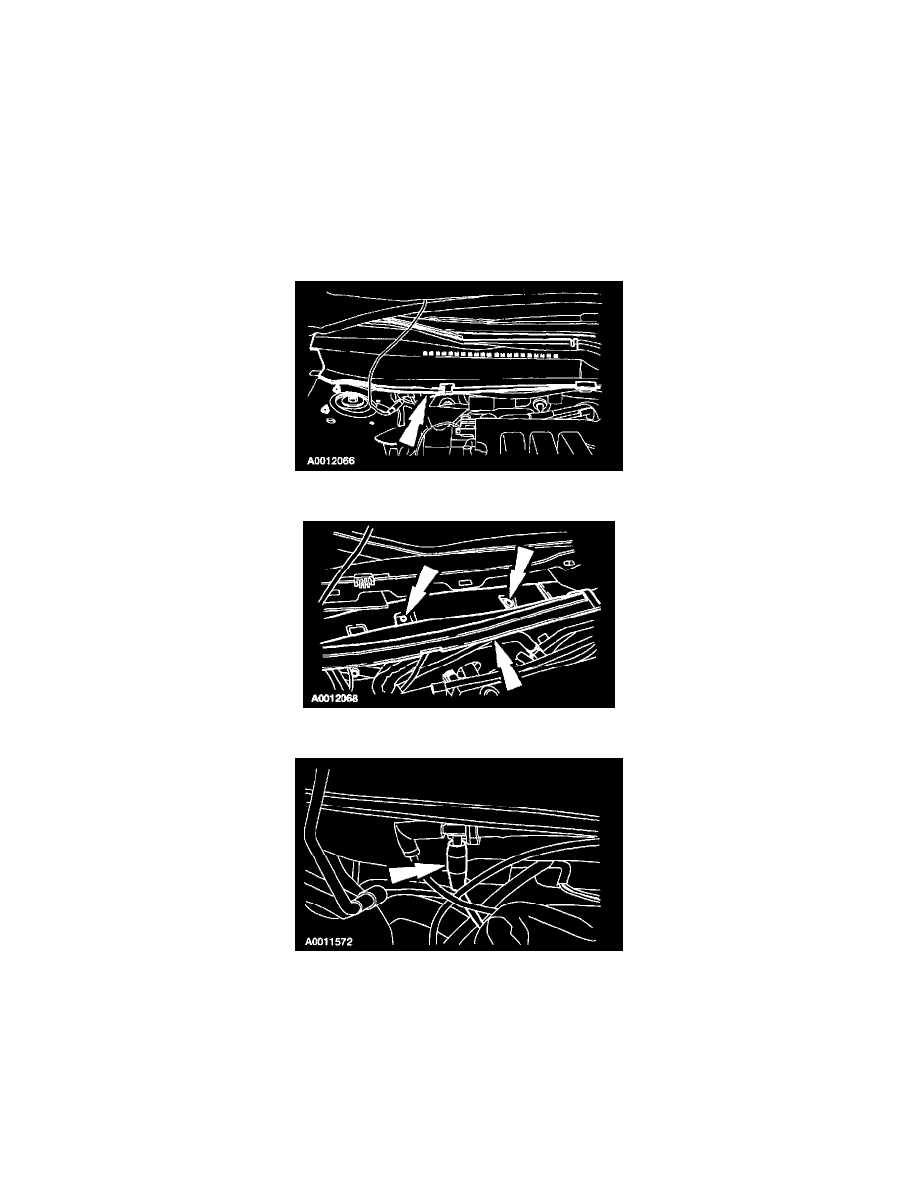

2. Remove the right side cowl vent screen.
3. Remove the screws and the water shield.
4. Disconnect the vacuum supply hose.
