Orifice Tube: Service and Repair

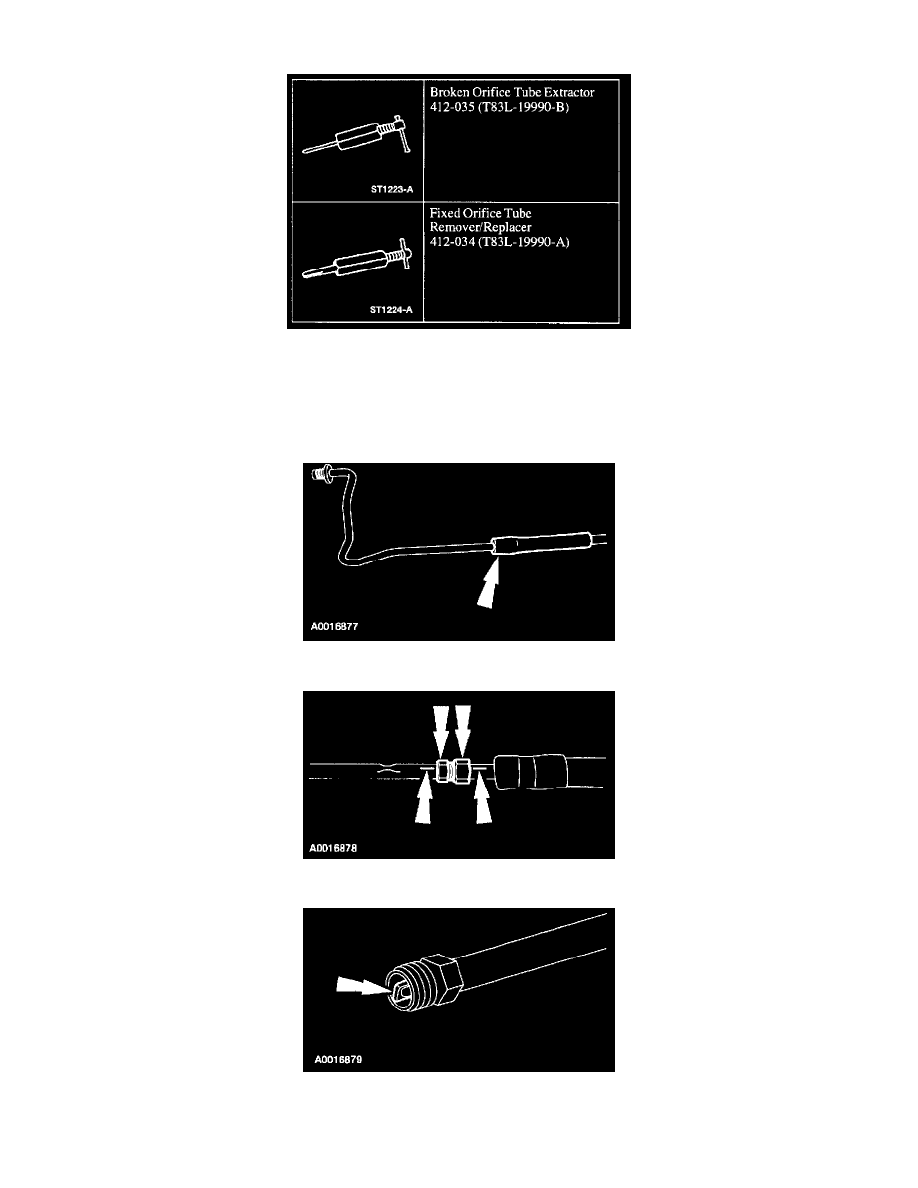

SPECIAL TOOL(S)

REMOVAL

All vehicles

1. Remove the condenser to evaporator line.

2. Pull back the protective cover.

3. Index mark the condenser to evaporator line. Disconnect the two halves of the condenser to evaporator line.

4. Inspect the evaporator core orifice for damage.

Vehicles with a serviceable evaporator core orifice
