Cargo Lamp: Service and Repair

REMOVAL

1. Disconnect the battery ground cable.

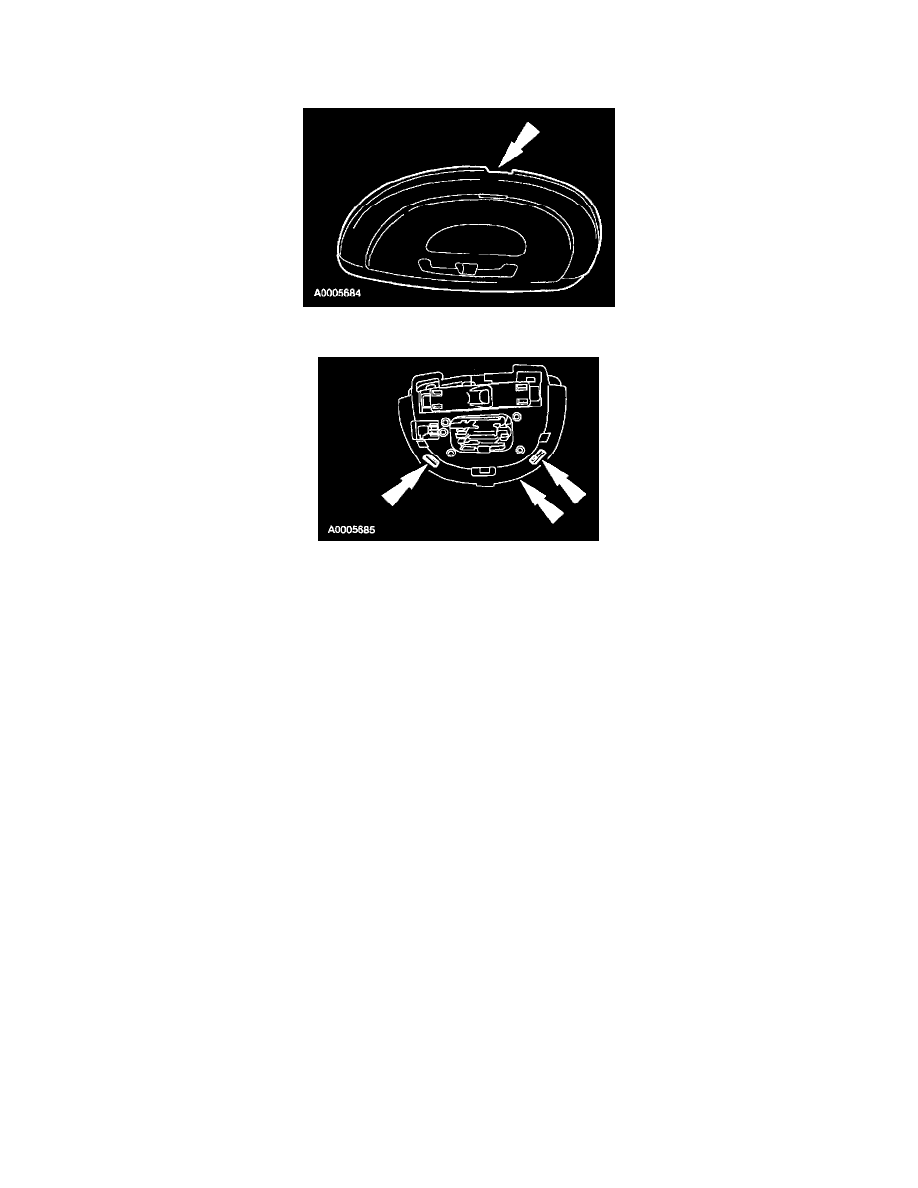

2. Remove the cargo lamp lens.

3. Release the retaining clips and remove the cargo lamp assembly

^

Disconnect the electrical connector.

INSTALLATION

1. To install, reverse the removal procedure.
