Main Light Switch: Service and Repair

REMOVAL

1. Disconnect the battery ground cable.

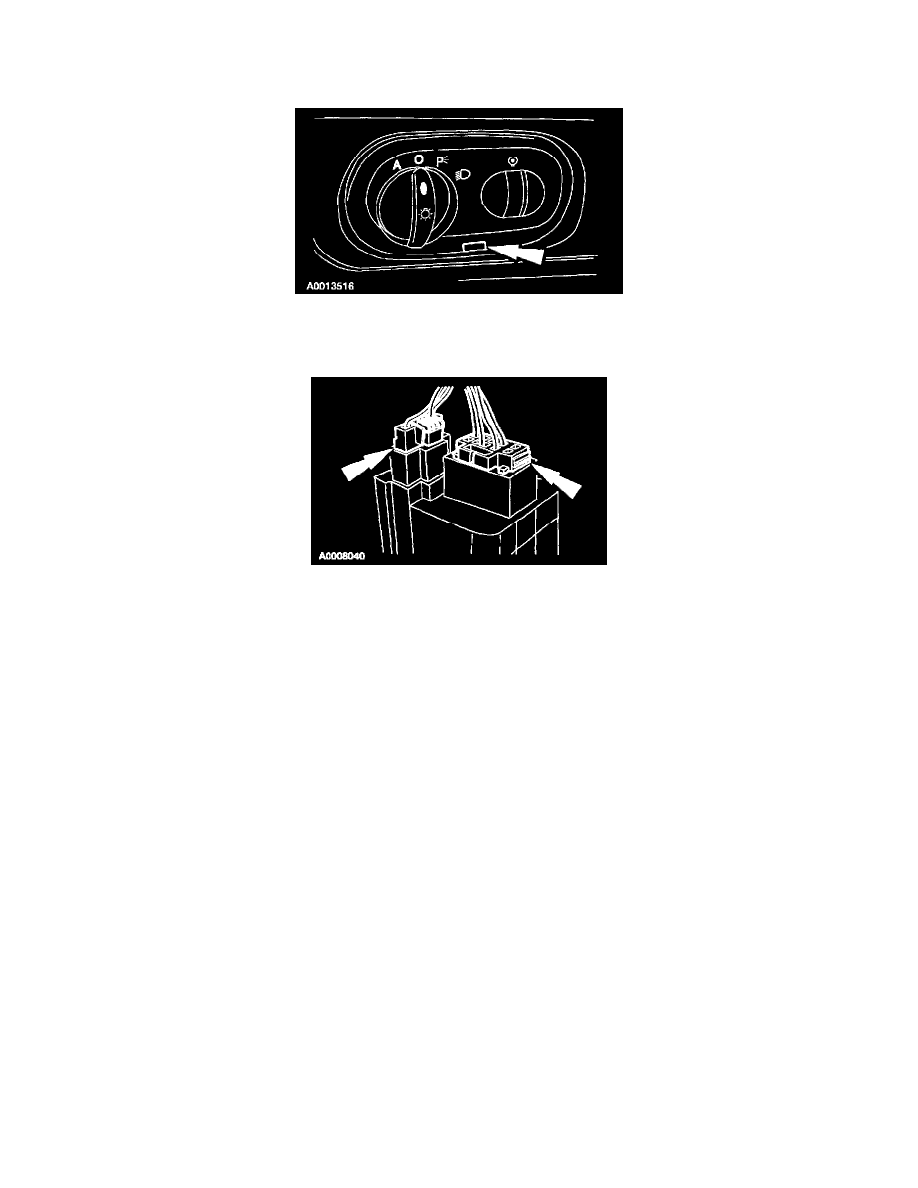

2. Insert a thin tool to remove the headlamp switch.

CAUTION:  Cover the end of the tool with tape to prevent damage.

3. Disconnect the electrical connectors.

INSTALLATION

1. To install, reverse the removal procedure.
