Digital Transmission Range Sensor <--> [Transmission Position Switch/Sensor, A/T]|AX4S|Page 4030 > < Digital Transmission Range Sensor <--> [Transmission Position Switch/Sensor, A/T]|AX4S

Sable V6-3.0L DOHC VIN S (2002)

Page 2
background image

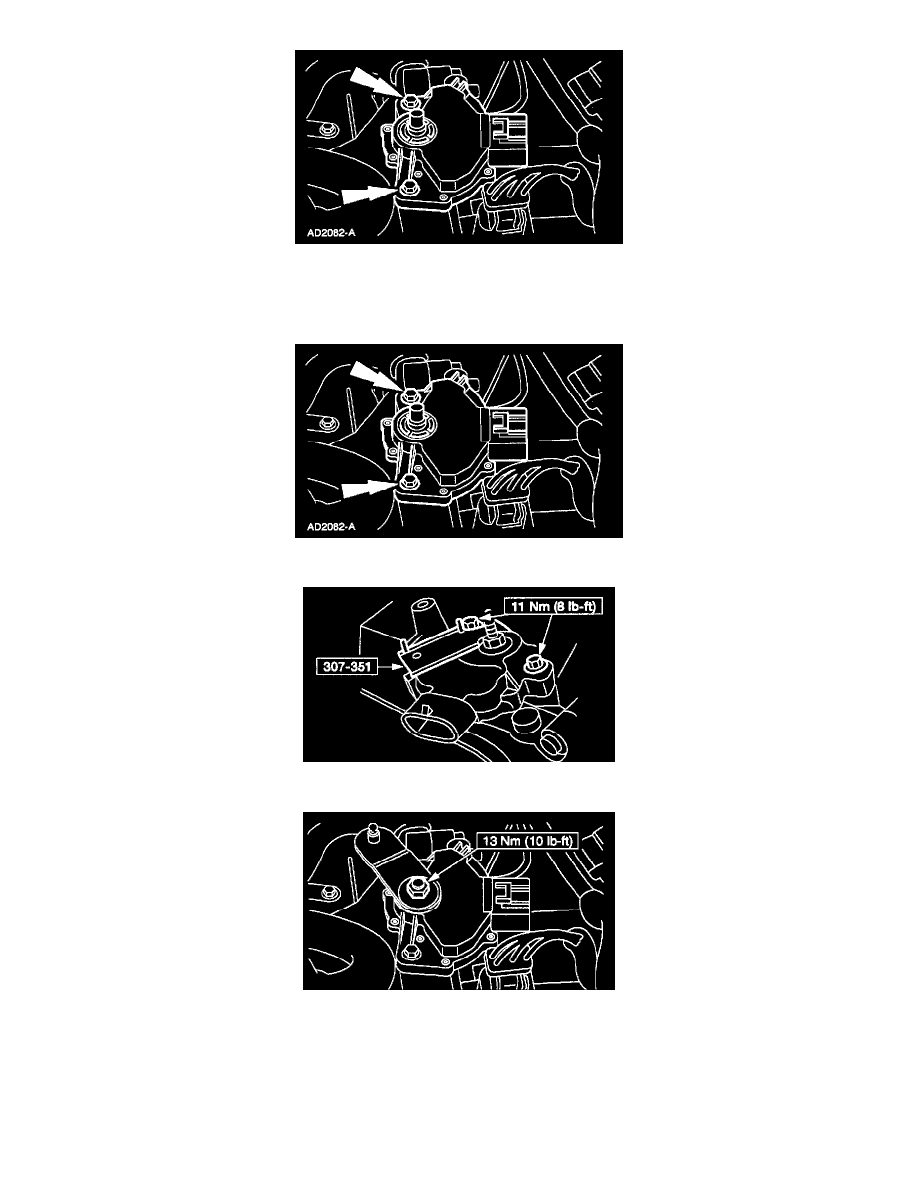

8. Remove the digital transmission range (TR) sensor.

Installation

1. Verify that the transaxle range selector lever is in NEUTRAL.

2. Install the digital TR sensor and loosely install the bolts.

3. Using the special tool, align the digital TR sensor.

4. Install the manual control lever and nut.
