Sable V6-3.0L DOHC VIN S (2002)
Resonator: Service and Repair
REMOVAL
1. Raise and support the vehicle.
2. Remove the LH front wheel and tire assembly.

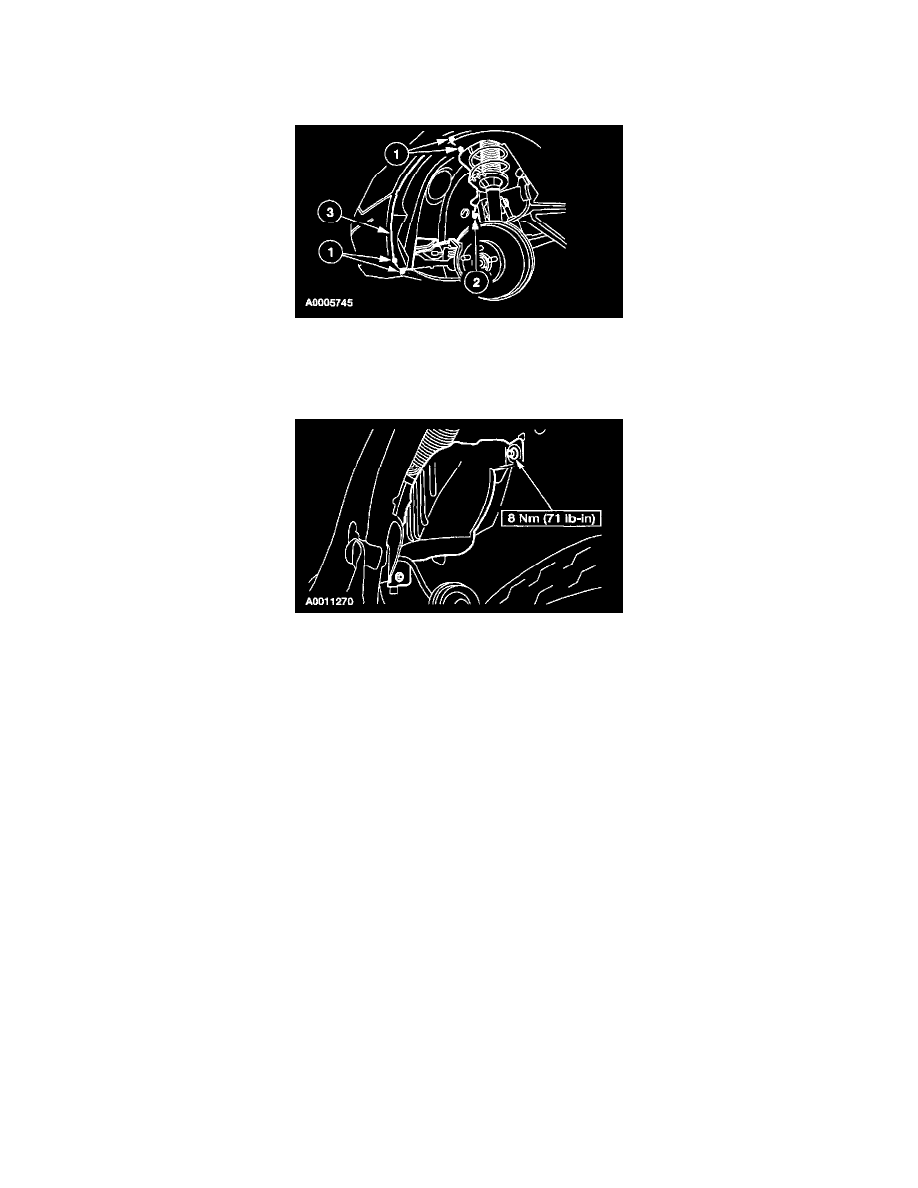

3. Remove the LH front fender splash shield.
1
Remove the four screws.
2
Remove the pin-type retainer.
3
Remove the front inner splash shield.
4. Remove the two bolts and the engine intake air resonator from the vehicle.
INSTALLATION
1. To install, reverse the removal procedure.
