Sable V6-3.0L DOHC VIN S (2002)
Mass Air Flow Sensor: Service and Repair
REMOVAL
1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet tube.

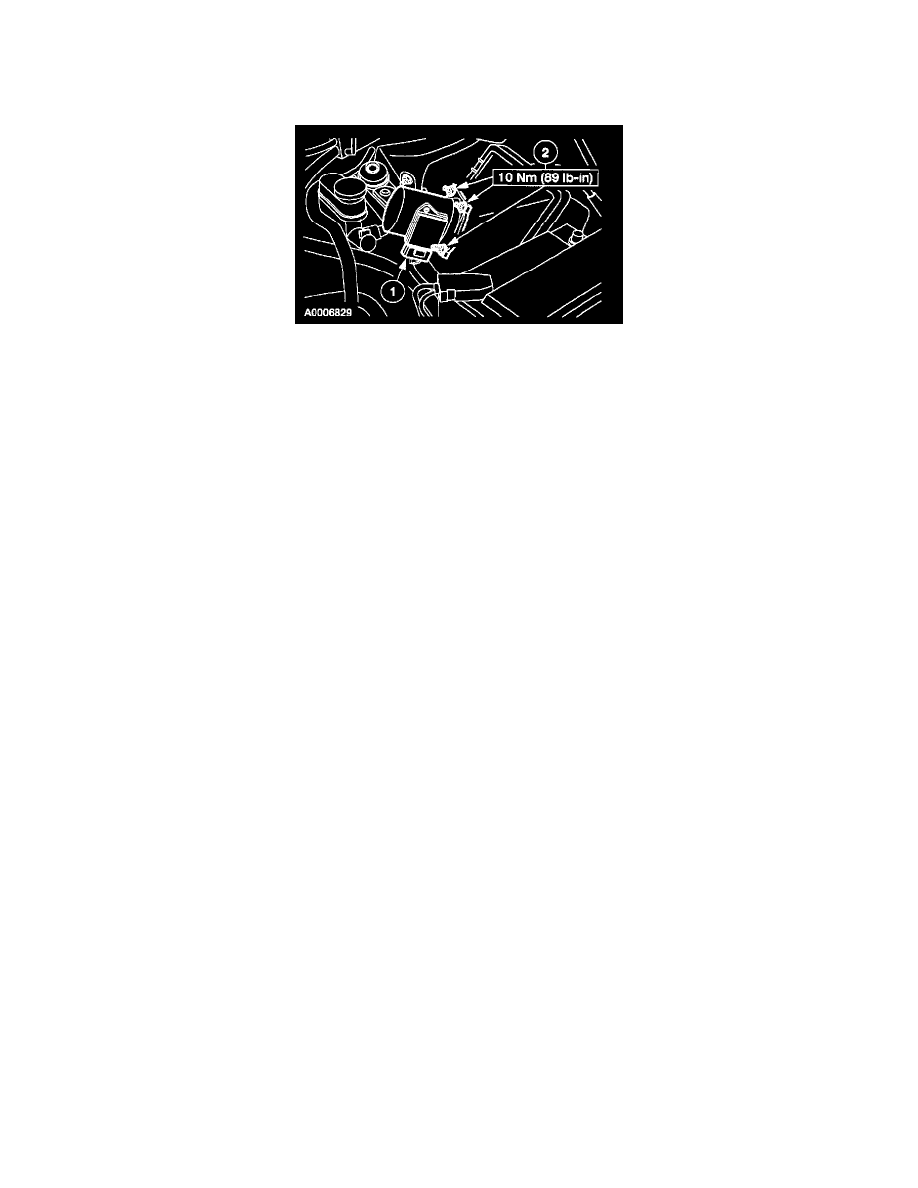

3. Remove the MAF sensor.
1
Disconnect the electrical connector.
2
Remove the four nuts and the MAF sensor.
CAUTION: The Mass Air Flow (MAF) is a calibrated unit. Service hot wire element and housing as a complete assembly. Hot wire element
should never be cleaned or installed separately. Installing only the element may change the airflow calibration.
INSTALLATION
1. To install, reverse the removal procedure.
