Sable V6-3.0L DOHC VIN S (2002)
Child Seat Tether Attachment: Service and Repair
Lower Anchor and Tether for Children (LATCH)
Four Door
REMOVAL
1. Remove the second row seat cushion and seat backrest.

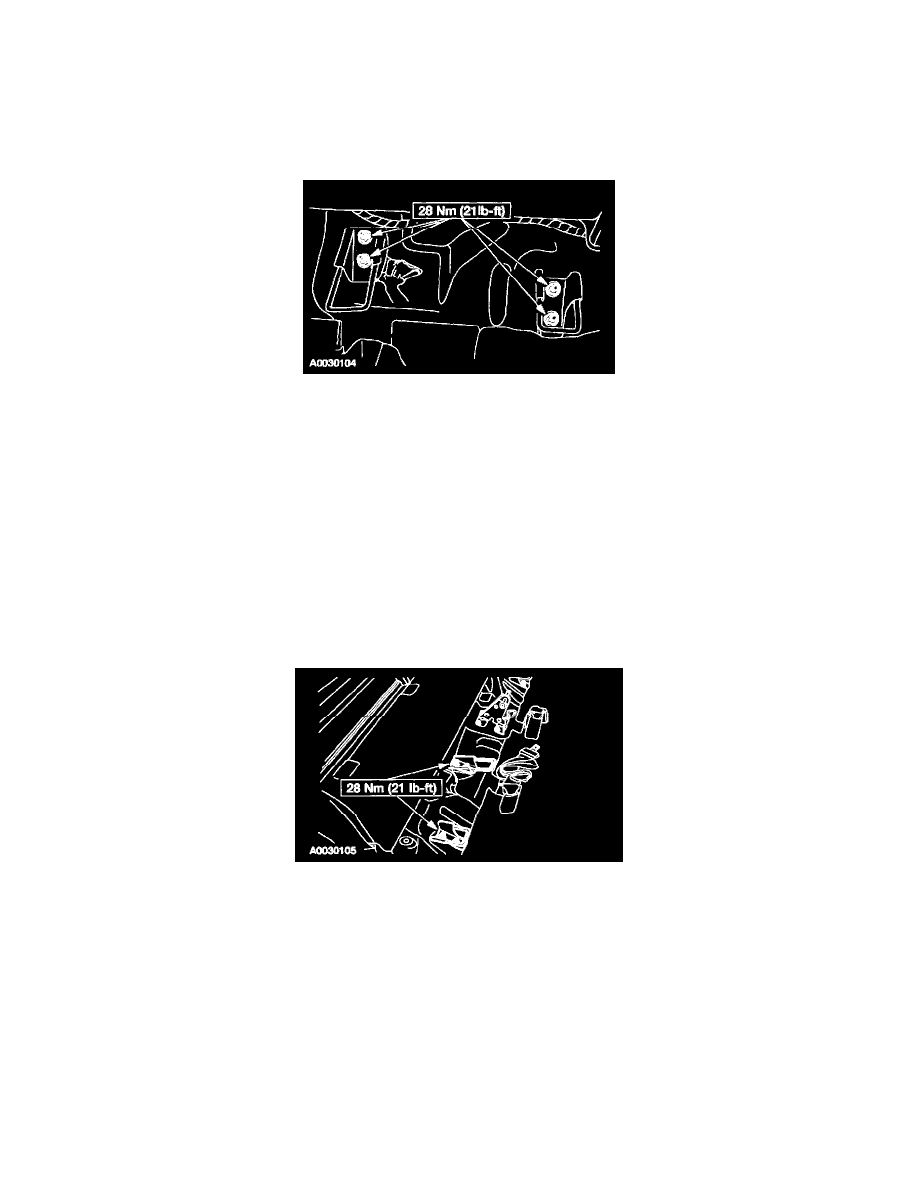

2. Remove the nuts and the Lower Anchor and Tether for CHildren (LATCH) attaching brackets.
NOTE:
^
Driver side shown, passenger side similar.
^
Apply Threadlock 262 to the studs before installing the nuts.
INSTALLATION
1. To install, reverse the removal procedure.
^
Apply Threadlock 262 to the studs before installing the nuts.
Wagon
REMOVAL
1. Remove the second row seat cushion and seat backrest.
Wagon-passenger side
2. Remove the nuts and the LATCH attaching brackets.
NOTE: Apply Threadlock 262 to the studs before installing the nuts.
Wagon-driver side inboard
