Sable V6-3.0L DOHC VIN S (2002)

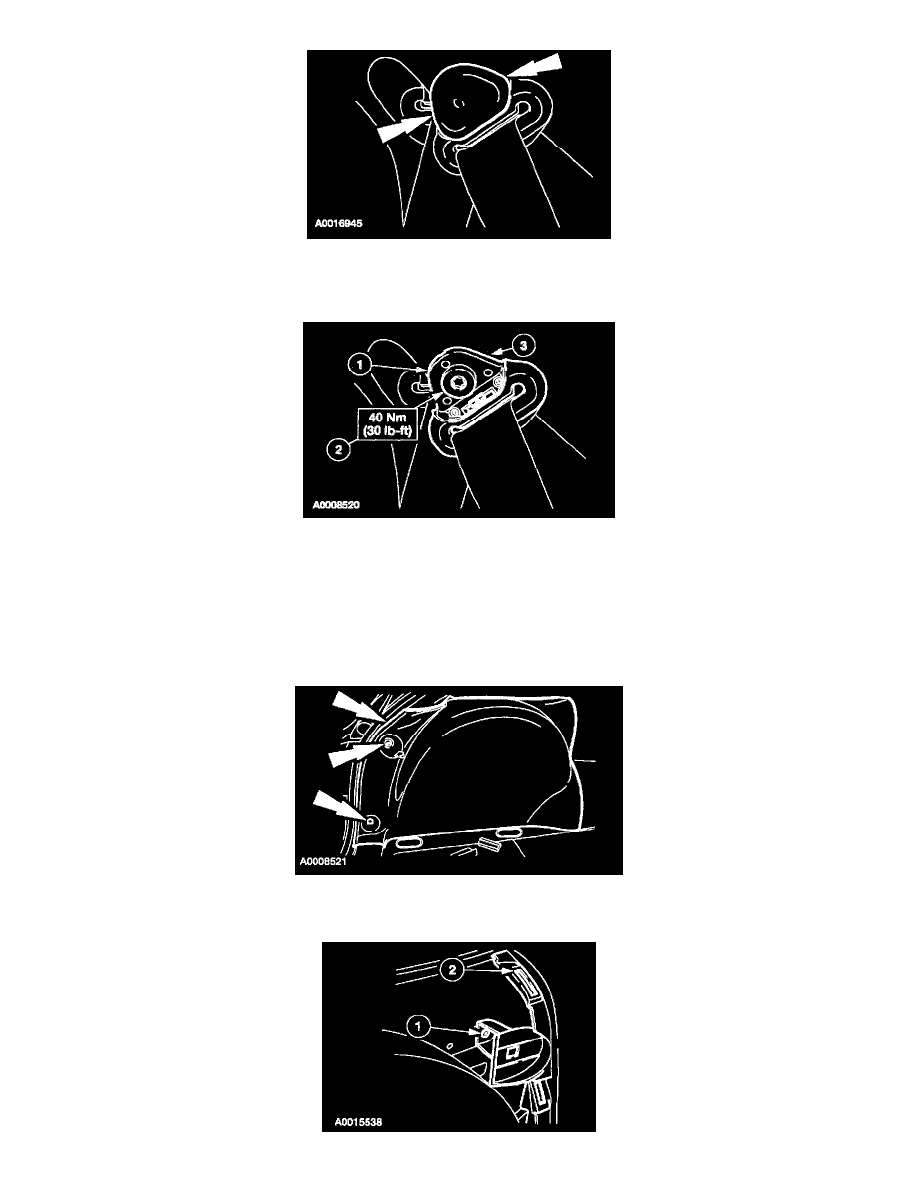

7. From behind the safety belt guide, release the tabs on each side and carefully pull out and remove the safety belt guide cover.
NOTE: If the safety belt guide cover is damaged or if it does not remain closed, install a new cover.
8. Remove the third row safety belt guide.
1
From behind the quarter trim panel, put a wrench on the second row safety belt guide retaining stud.
2
While holding the hidden fastener, use special tool 501-010 (T77L-2100-A), and remove the bolt.
3
Remove the third row safety belt guide.
NOTE: A hidden fastener for the second row retractor is behind the quarter trim panel.
Driver side
9. Release the retainers at the back, pull to release the clips retaining the back half of the quarter trim to the front half, and remove the rear half of the
quarter trim panel.
