Sable V6-3.0L DOHC VIN S (2002)

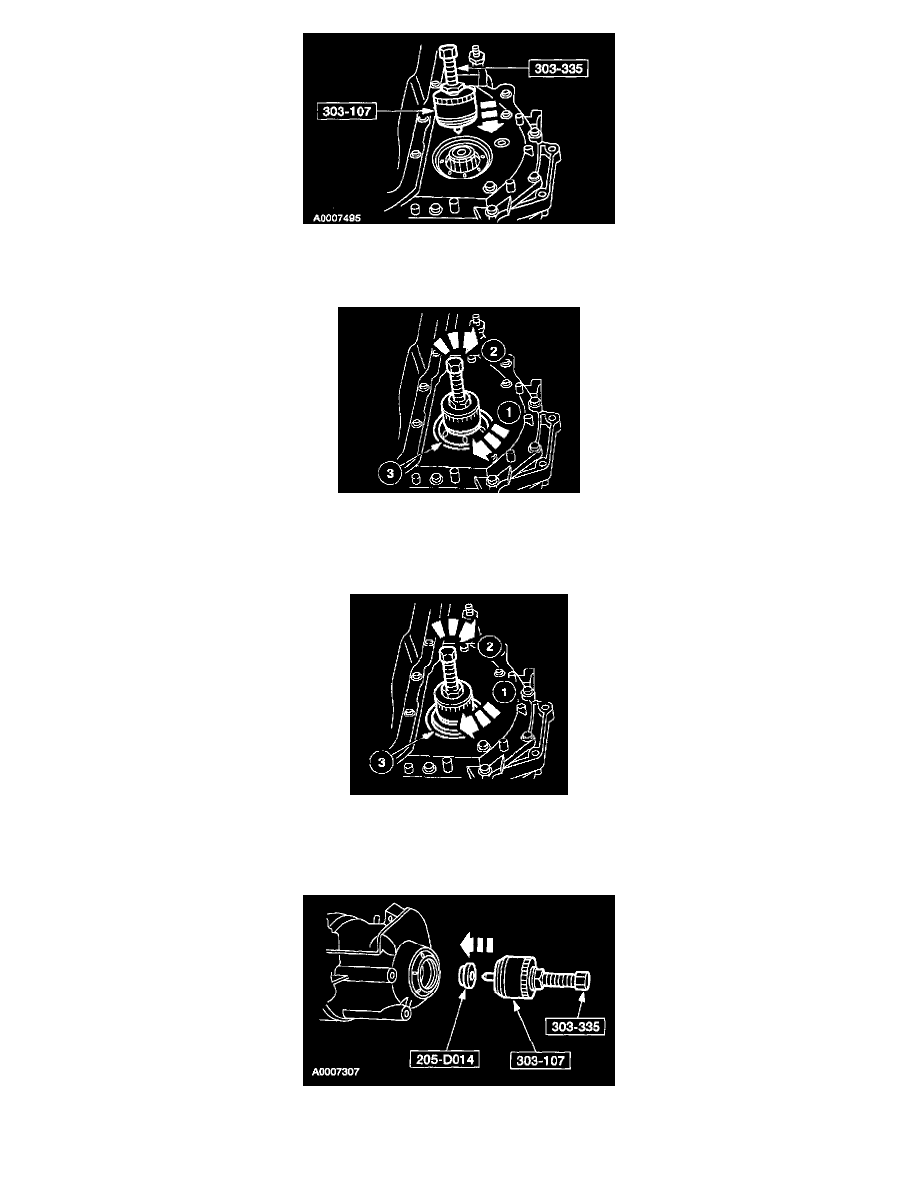

5. NOTE: The differential seal is a two-piece constructed seal.
Using the special tools remove, the left differential seal.
6. Using the special tools remove, the LH differential seal.
1. Rotate the Front Cover Seal Remover.
2. Rotate the forcing screw while holding the front cover seal remover.
3. Remove the metal protector from the LH differential seal and remove protector from tool.
7. Using the special tools remove, the rubber portion of the LH differential seal.
1. Install the special tool into the left differential seal and rotate the Front Cover Seal Remover.
2. Rotate the forcing screw while holding the front cover seal remover.
3. Remove the rubber portion of the seal.
8. Install the special tools into the RH differential seal.
