Sable V6-3.0L DOHC VIN S (2002)
Transmission Speed Sensor: Service and Repair
4F50N

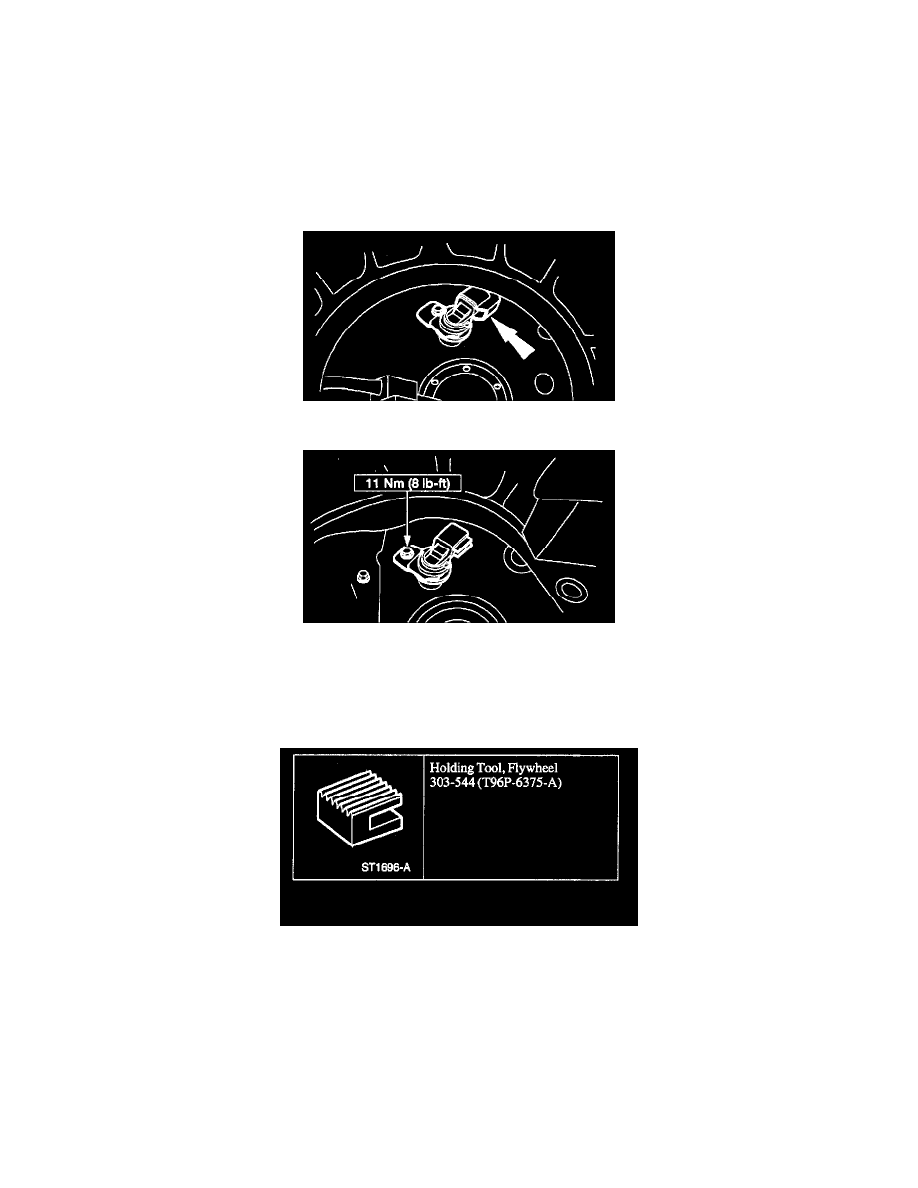

Turbine Shaft Speed (TSS) Sensor
Turbine Shaft Speed (TSS) Sensor
Removal and Installation
1. Raise the vehicle on a hoist.
2. Remove LH front wheel and tire.
3. Disconnect the turbine shaft speed (TSS) sensor connector.
4. Remove the turbine shaft speed (TSS) sensor.
5. To install, reverse the removal procedure.
Output Shaft Speed (OSS) Sensor-3.0L DOHC
Output Shaft Speed (OSS) Sensor-3.0L DOHC
Special Tool(s)
Removal and Installation
1. Disconnect the battery ground cable.
