Digital Transmission Range Sensor <--> [Transmission Position Switch/Sensor, A/T] > < Transmission Mount, A/T|AX4S|Page 5338

Sable V6-3.0L DOHC VIN S (2002)

Page 2
background image

6. Remove the engine and transaxle upper support insulator bolts and insulator.

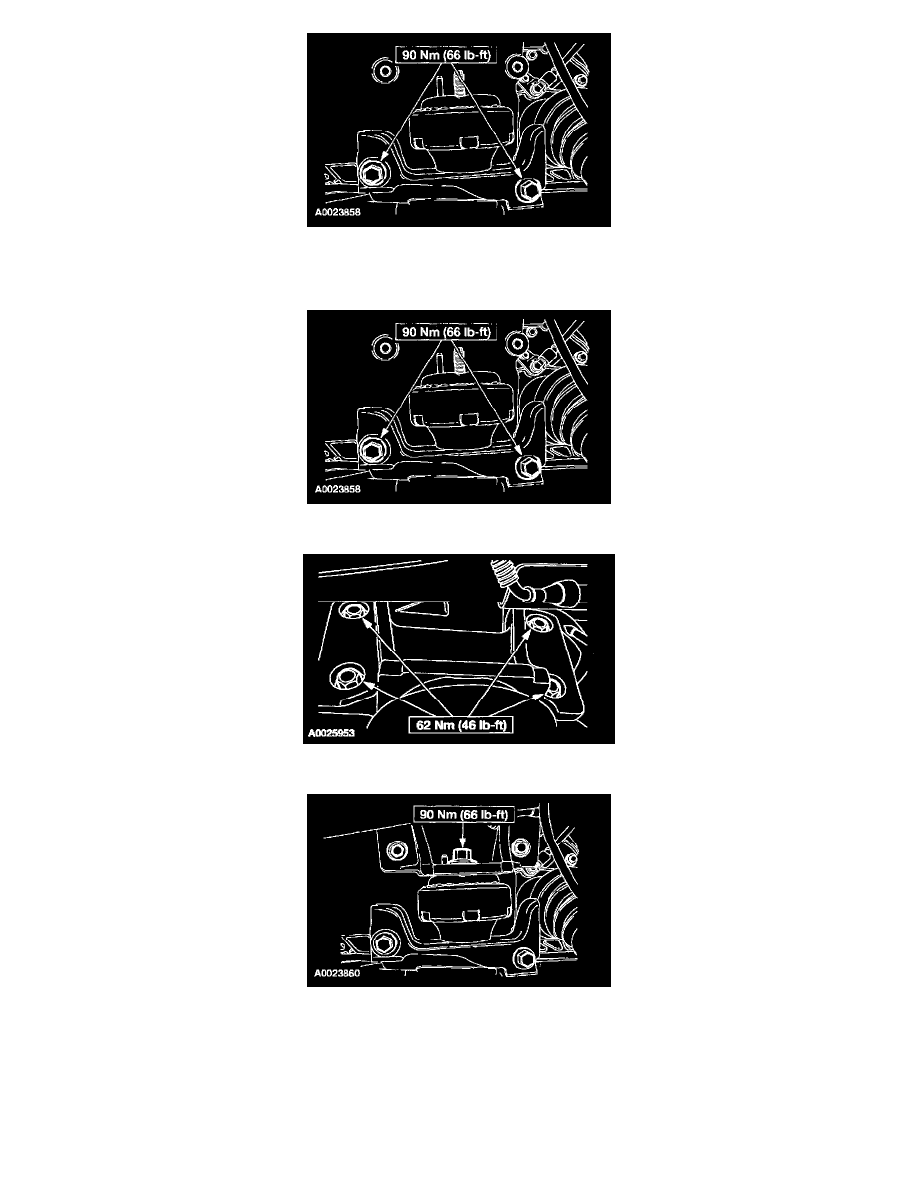

Installation

1. Install the engine and transaxle support insulator and bolts.

2. Install the engine and transaxle upper support bracket bolts and bracket.

3. Install the engine and transaxle upper support insulator nut.
4. Remove the high lift transmission jack.
5. Install the LH wheel and tire.
6. Lower the vehicle.
