Sable AWD V6-3.5L (2008)
Taurus X (Part 2)
Removal and Installation
1. Remove the rear seat bolster.
2. Remove the C-pillar trim panel screw cover.
3. Remove the C-pillar trim panel screw.
4. Remove the C-pillar trim panel.
-
Pull the forward bottom edge of the lower C-pillar toward the center of the vehicle.
-
Separate the lower C-pillar from the D-pillar trim panel.
-
Position the C-pillar trim panel toward the inside of the vehicle.
-
Separate the C-pillar trim panel from the rear safety belt.
5. To install, reverse the removal procedure.
B-Pillar Trim Panel
B-PILLAR TRIM PANEL

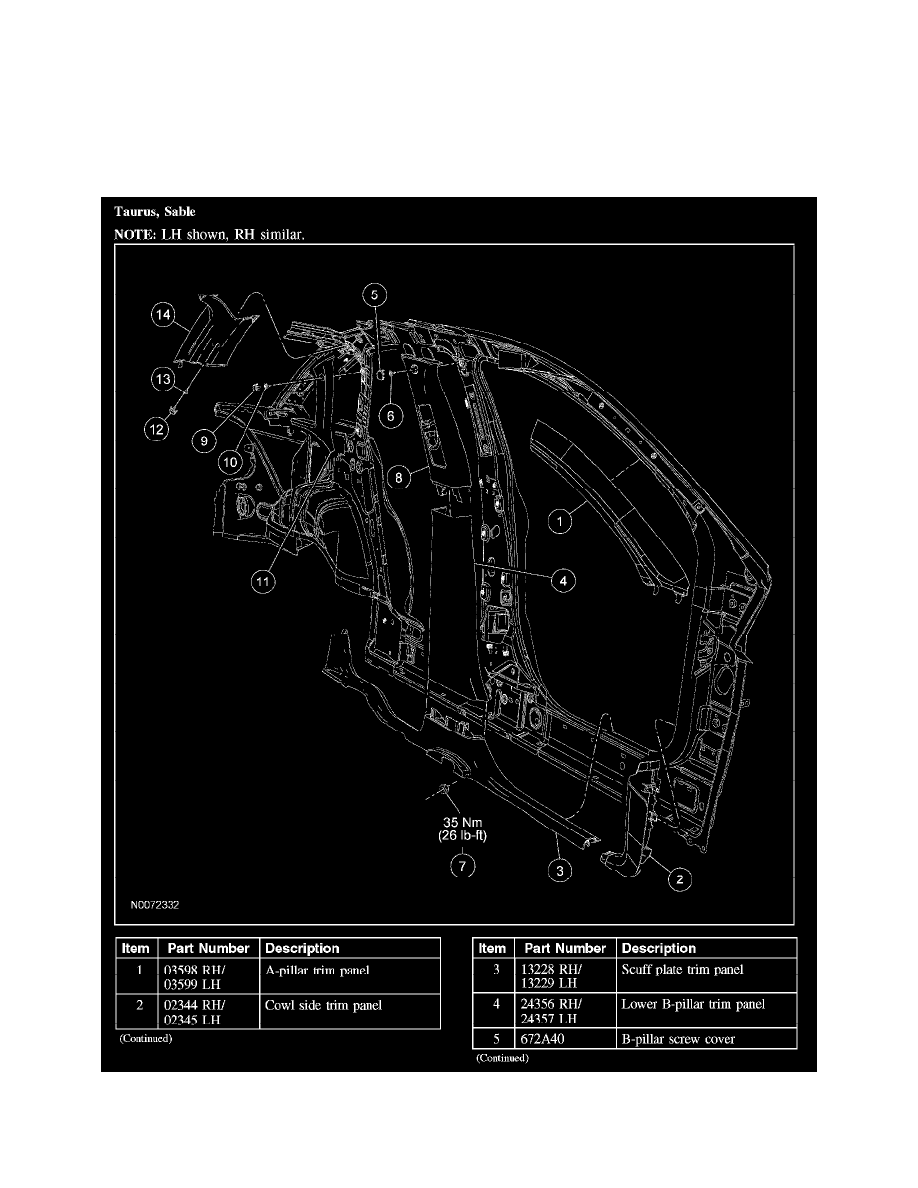

Exploded View
