Sable AWD V6-3.5L (2008)

Page 2
background image

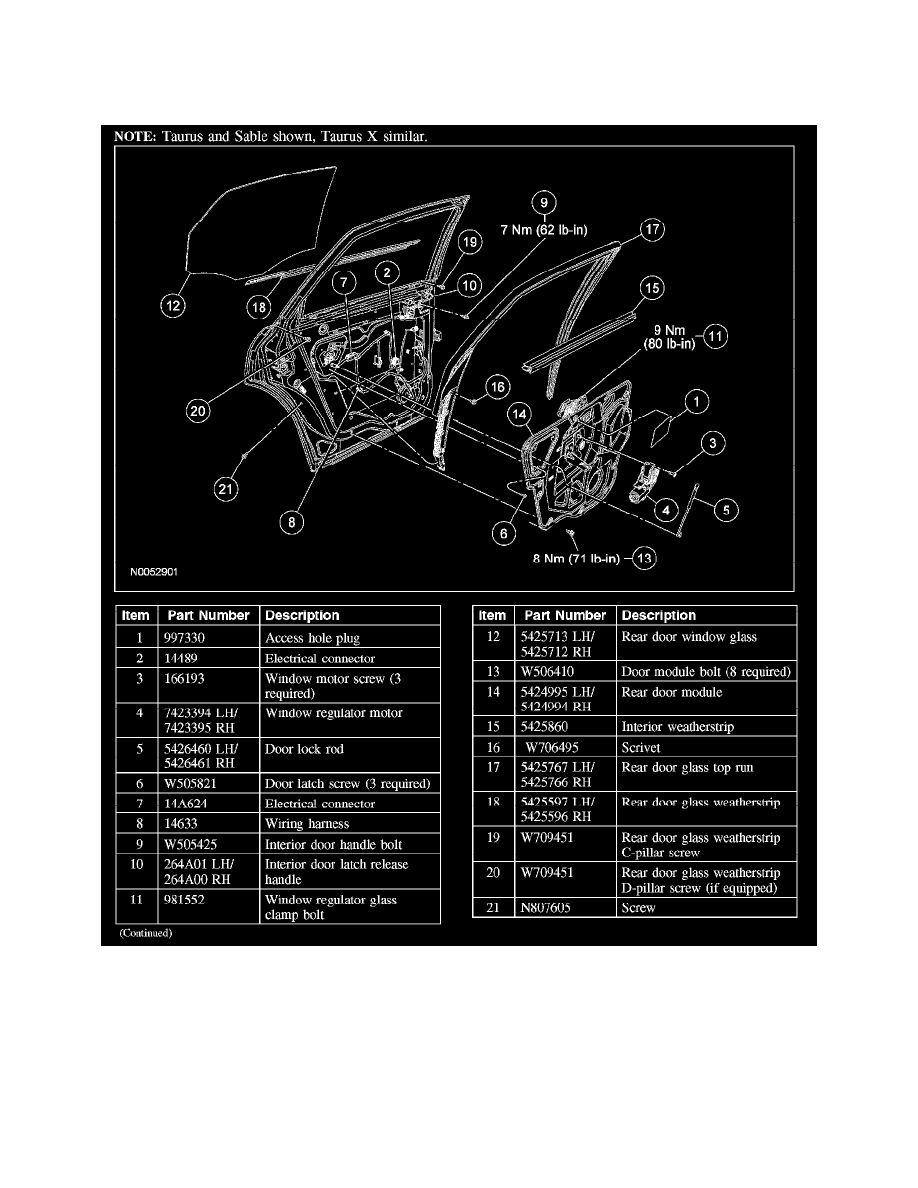

5. Remove the rear door glass top run bolt.

6. Remove the rear door glass inner weatherstrip.
7. Carefully position the glass aside, then remove the rear door glass top run.
8. To install, reverse the removal procedure.
