Sable AWD V6-3.5L (2008)
Valve Spring: Procedures

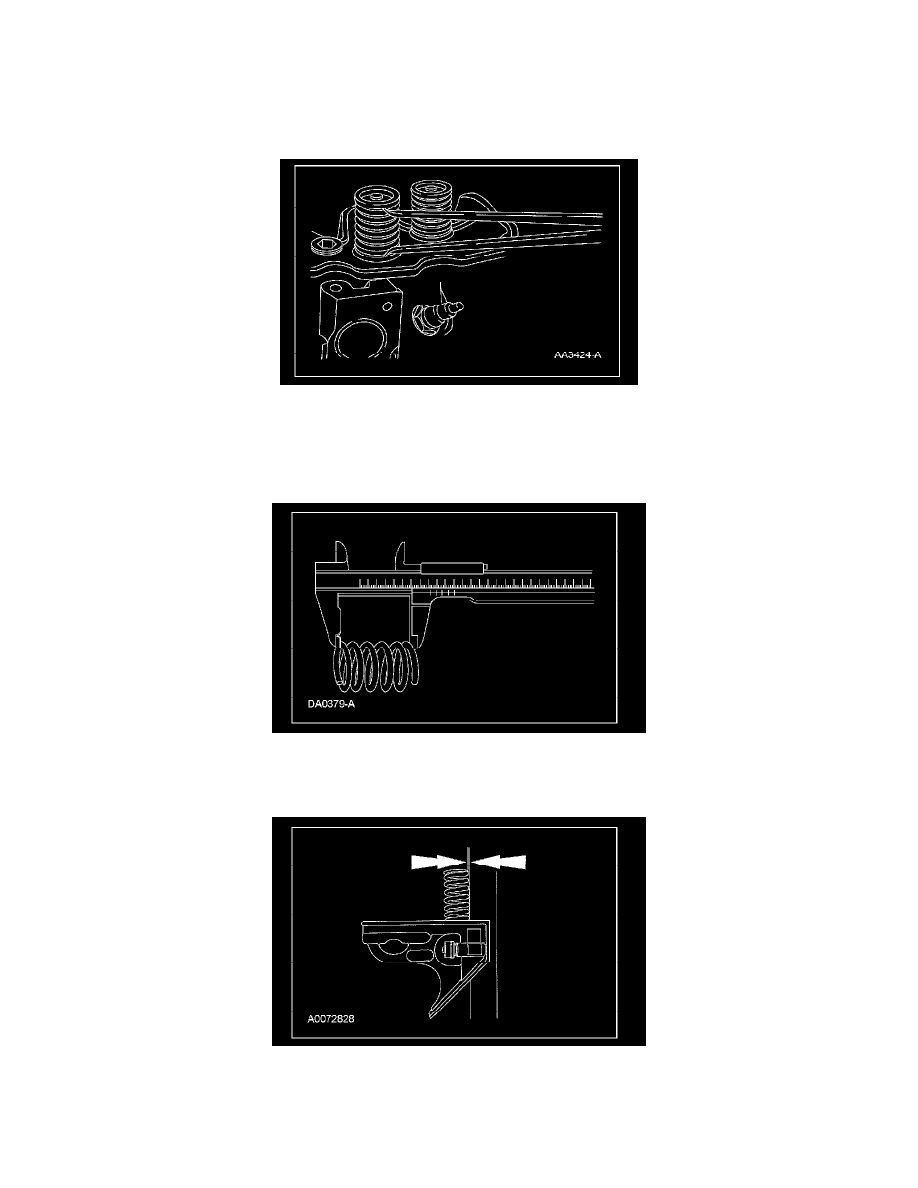

Valve Spring Installed Length
NOTE: Refer to the appropriate specification.
1. Measure the installed length of each valve spring.
Valve Spring Free Length
NOTE: Refer to the appropriate specification.
1. Measure the free length of each valve spring.
Valve Spring Squareness
1. Measure the out-of-square on each valve spring.
^
Turn the valve spring and observe the space between the top of the valve spring and the square.
Valve Spring Strength
Special Tool(s)
