Sable AWD V6-35L (2008) Smart Junction Box Information

Page 1
background image

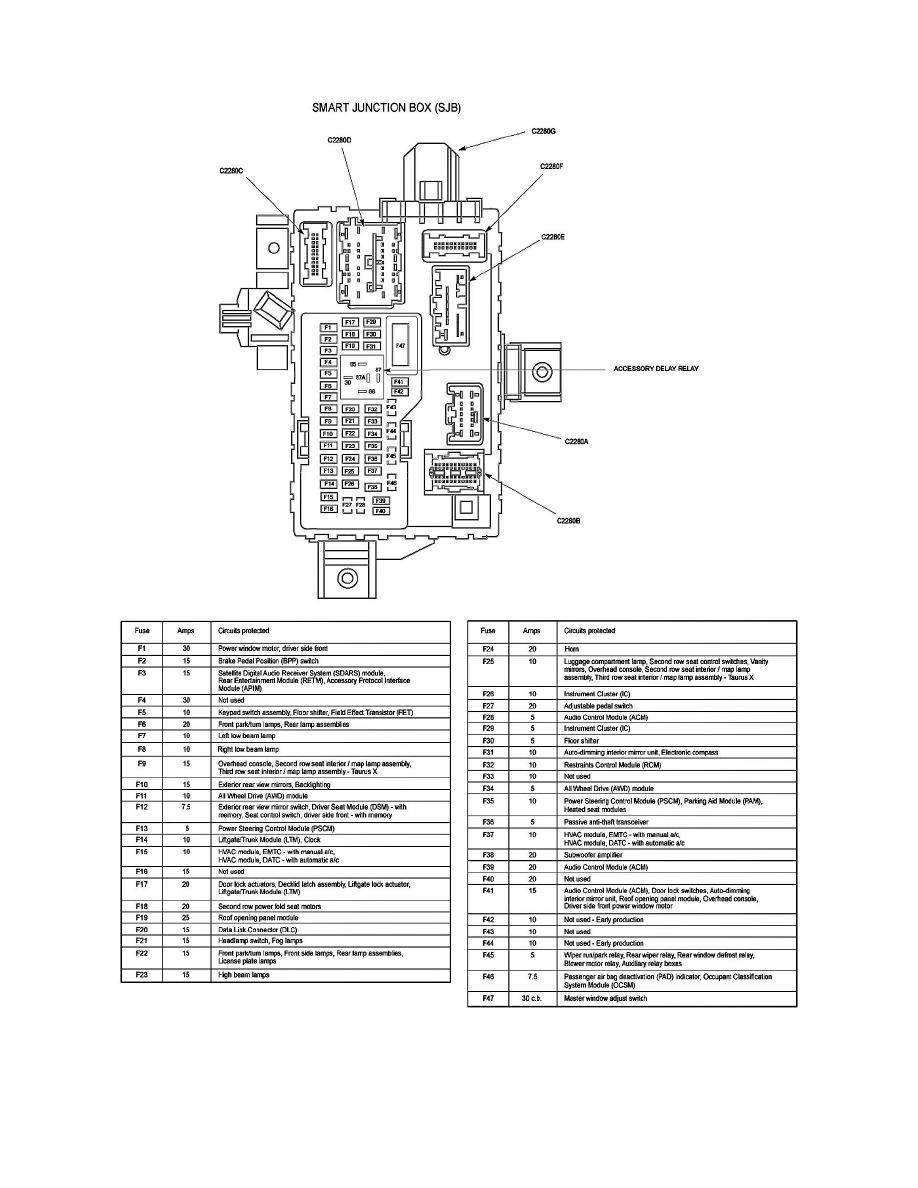

Fuse Block: Application and ID
Smart Junction Box

Note:  The fuse panel is located under the instrument panel to the left of the steering wheel.
