Cruise Control Module: Locations

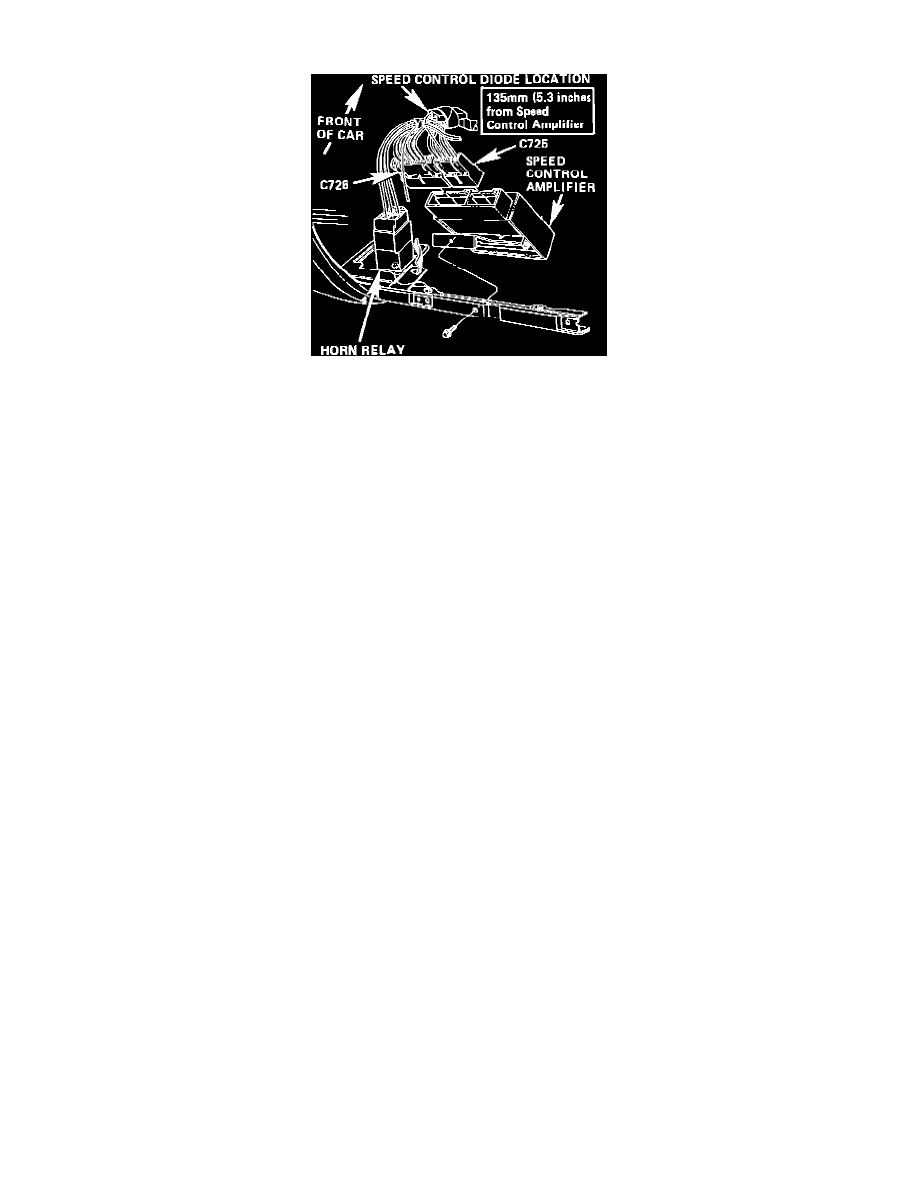

Horn Relay And Speed Control Amplifier

 Behind LH Side Of I/P, Next To Fuse Panel
