Exhaust Manifold: Service and Repair
Removing And Installing, Sealing/Replacing Exhaust Manifold
Remove exhaust system from manifold.

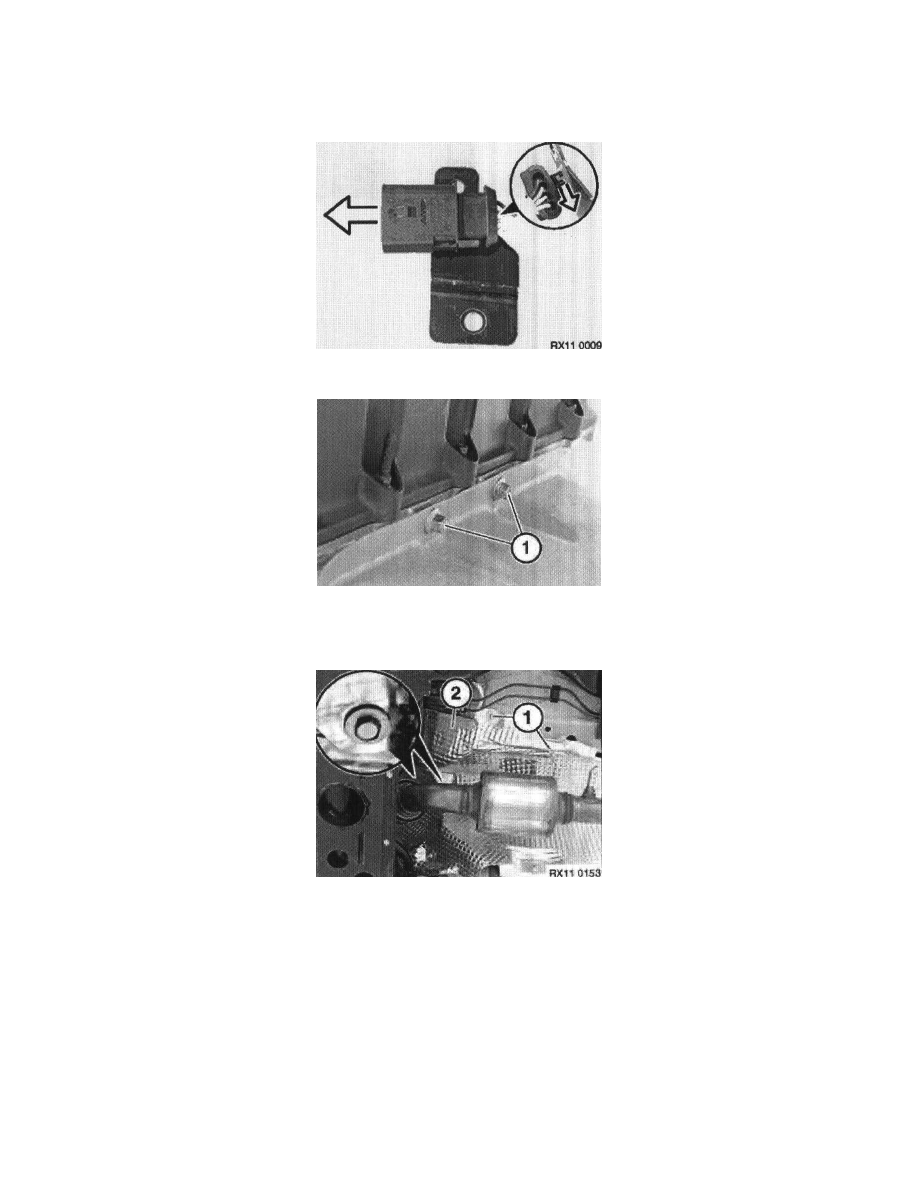

Remove both oxygen sensor connectors.
Remove heat shield fixings (1).
Heat shield to cylinder head bolt torque
M8 x 20 ............................................................................................................................................................................................................. 13 Nm
Remove heat shield fixings (1).
Remove heat shield (2).
Note: Harness routing.
