Cooper (R50) L4-1.6L (W10) (2002)
Spark Plug Tube: Service and Repair
Removing and Installing Spark Plug Tube
Special Tools Required:
^
11 3 060
^
11 8 500
^
12 1 211
^
12 1 212
Remove cylinder head cover.

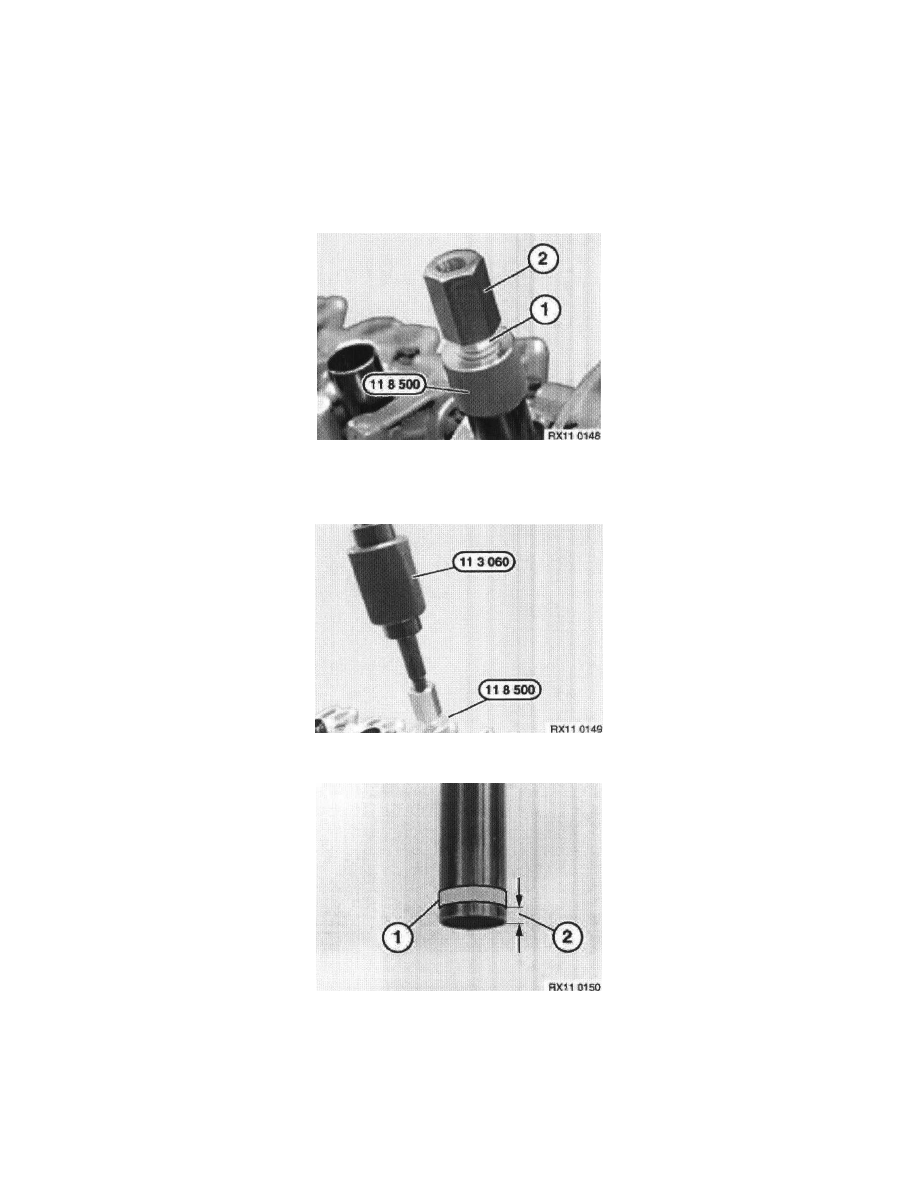

Insert special tool 11 8 500 into spark plug tube and tighten lock nut (1).
Attach adaptor (2) and tighten onto lock nut (1).
Connect special tool 11 3 060 to special tool 11 8 500
Clean area around spark plug tube.
Apply a 3 mm bead of Loctite 277 sealer approximately 1 mm from the end of the tube.
Refer to BMW Parts Service.
1 = bead
2 = 1 mm from end of tube
Remove spark plug.
