Cooper (R56) L4-1.6L (N12) (2008)
/l4-1.6l_(n12)/Page-1020001.png)
Fluid Pick-Up: Service and Repair
24 31 151 Removing and installing/replacing transmission fluid strainer (AISIN)
Important!
After completion of work, check transmission fluid level.
Use only the approved transmission fluid.
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Necessary preliminary tasks:
^
Remove transmission fluid sump

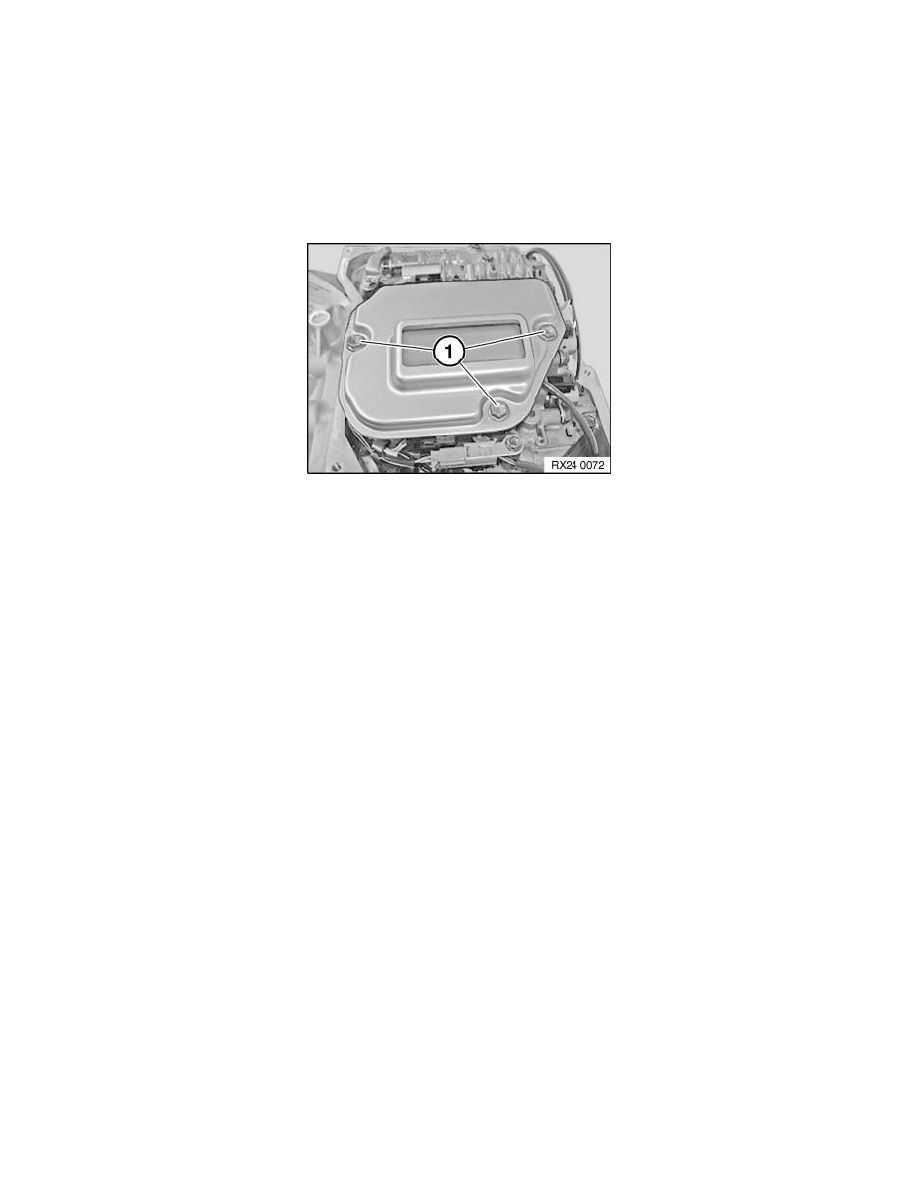

Release screws (1).
Remove fluid strainer.
Tighten AISIN screw connection Oil strainer
M6 Screw .......................................................................................................................................................................................................... 11 Nm
Installation:
Clean contact surfaces.
