Front Bumper Bracket: Service and Repair
Removing and Installing/Replacing Straightening Attachment For Front Bumper
51 11 130 Removing And Installing/Replacing Straightening Attachment For Front Bumper
Remove front bumper trim

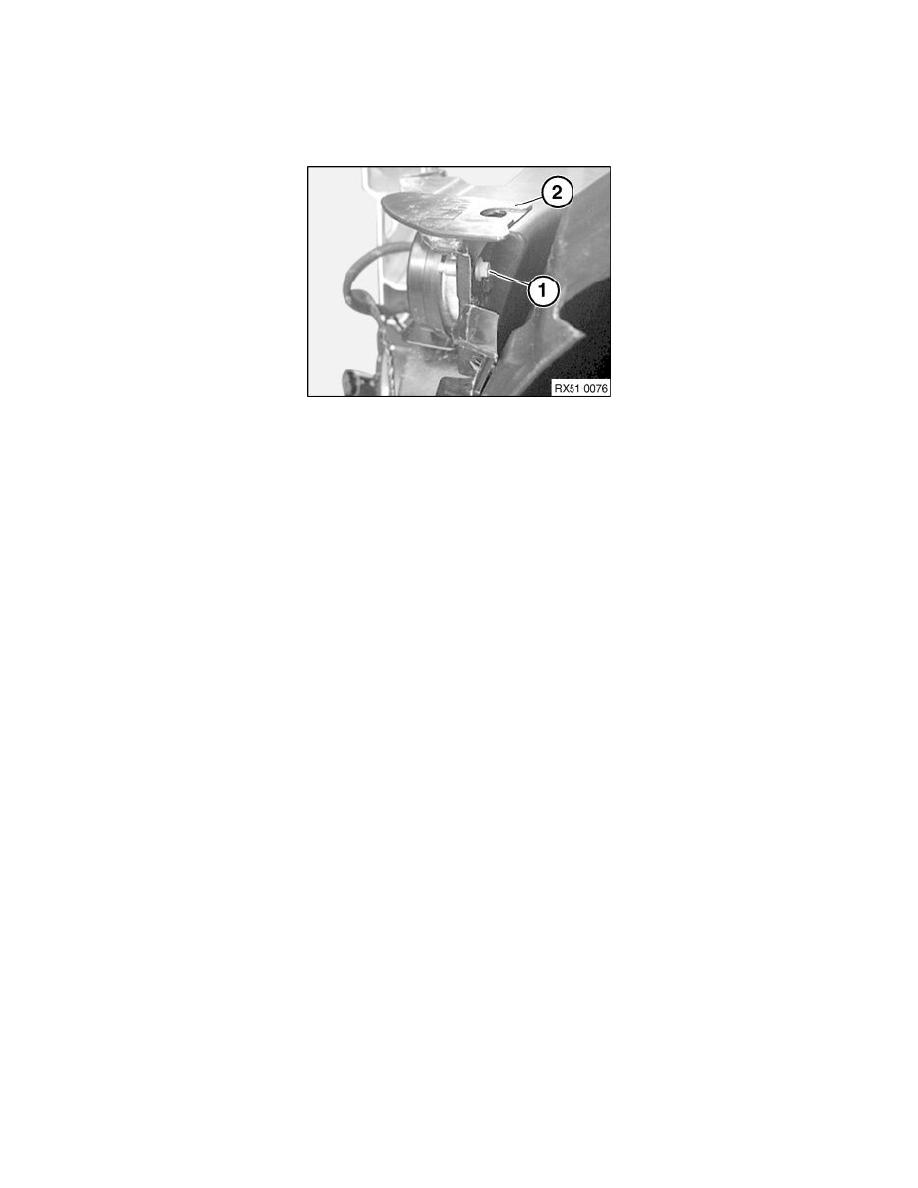

Unscrew bolt (1) and remove straightening attachment (2) from front end module.
5AZ Adjusting fixture to front panel
M6 x 20..................................................................................................................................................................................................................6 Nm
Adjust front bumper to fit.
