Cooper S (R56) L4-1.6L Turbo (N14) (2009)
Front Door Exterior Handle: Service and Repair
Removing and Installing or Replacing Outside Handle From Left or Right Front Door
51 21 170 Removing and Installing or Replacing Outside Handle From Left or Right Front Door
Necessary preliminary tasks:
-
Remove door trim panel carrier

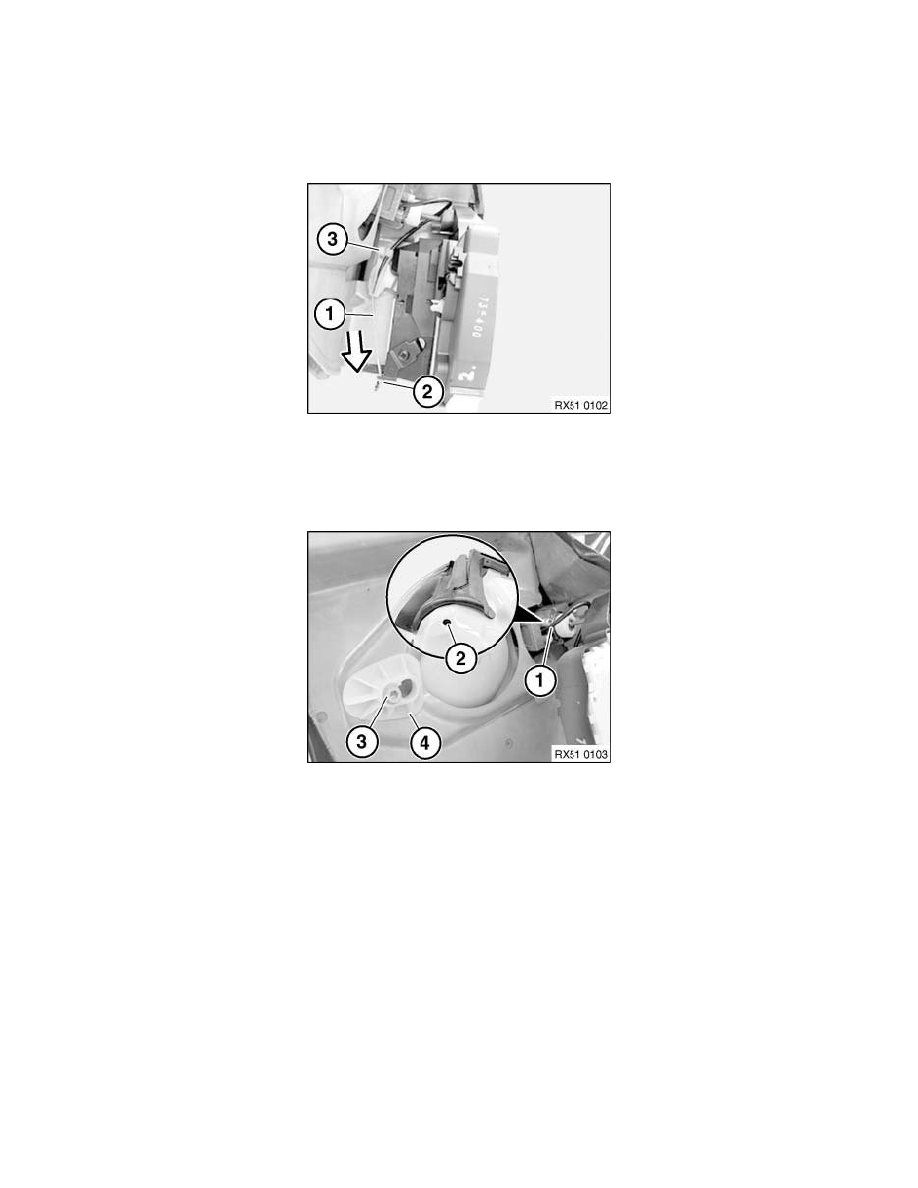

Disengage Bowden cable (1) from locking lever (2) and guide (3).
Installation:
Make sure Bowden cable (1) is correctly routed.
NOTE: Screw (1) is accessible from inside of door through opening (2). If necessary, lever out cover cap.
Release screw (1).
Release screw (3) and remove spacer (4).
Tightening torque 51 21 1AZ
Installation:
When fitting a new door handle, insert screws (self-tapping screws) in door handle prior to installation.
