Mini Workshop Service and Repair Manuals > Cooper S Clubman (R55) L4-1.6L Turbo (N14) (2008) > Heating and Air Conditioning | Relays and Modules - HVAC | Control Module HVAC | Component Information | Diagrams | Diagram Information and Instructions | Page 10271

Diagram Information and Instructions|Page 10272 > < Diagram Information and Instructions|Page 10270

Page 3

background image

Part 2

Heating and Air Conditioning
Relays and Modules - HVAC

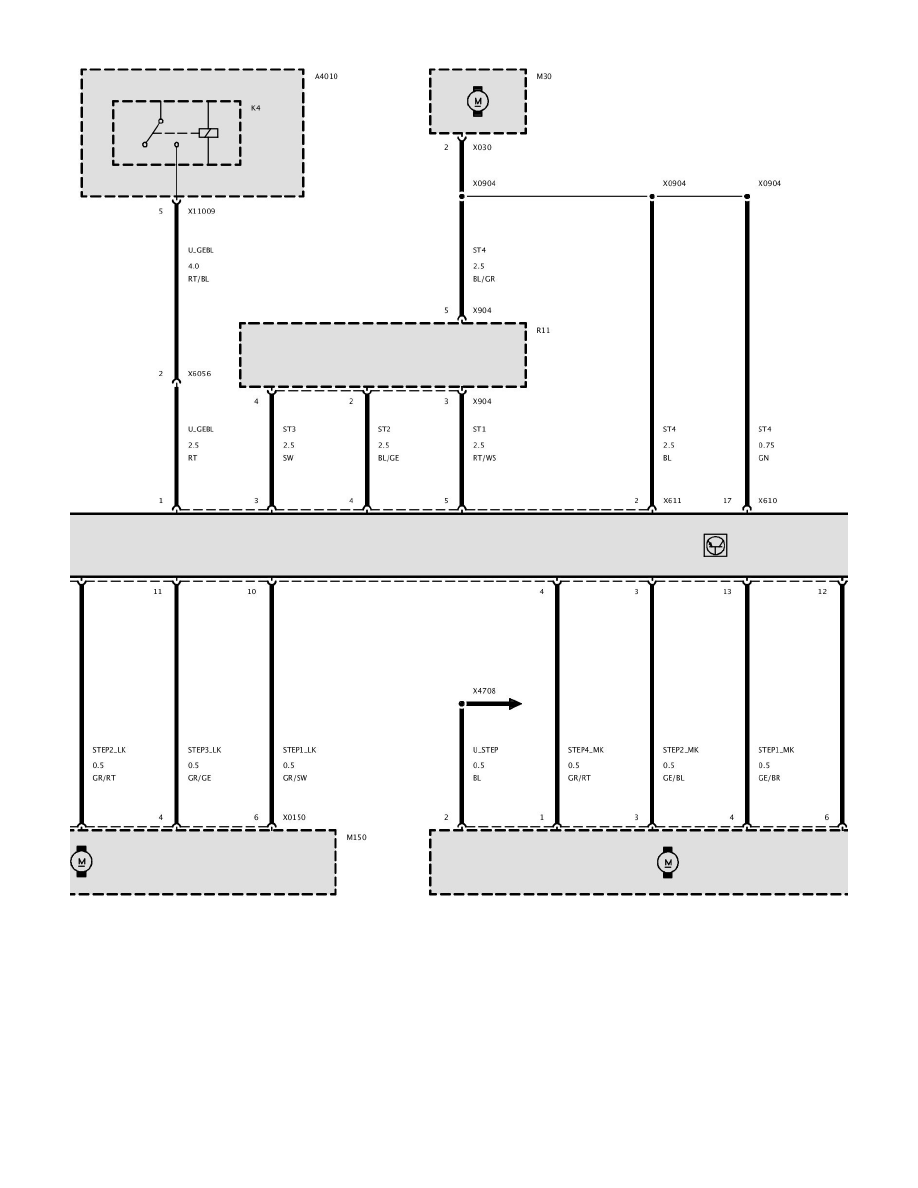

Control Module HVAC / Diagrams / Diagram Information and Instructions
Page 10271

Diagram Information and Instructions|Page 10272 > < Diagram Information and Instructions|Page 10270
