Cooper S Clubman (R55) L4-1.6L Turbo (N14) (2008)
/l4-1.6l_turbo_(n14)/Page-1709001.png)
Knee Diverter: Service and Repair
Removing and Installing/Replacing Knee Protection, Drivers Side, Left
51 45 250 - Removing and installing/replacing knee protection, driver's side, left
Necessary preliminary tasks:
-
Remove trim for instrument panel at bottom left See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and
Repair/Removing and Installing/Replacing Bottom Right Trim for Instrument Panel
-
Remove air outlet vent at side left See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Service and Repair/Removing and
Installing/Replacing Cover for Air Outlet Vent on Left (or Right)

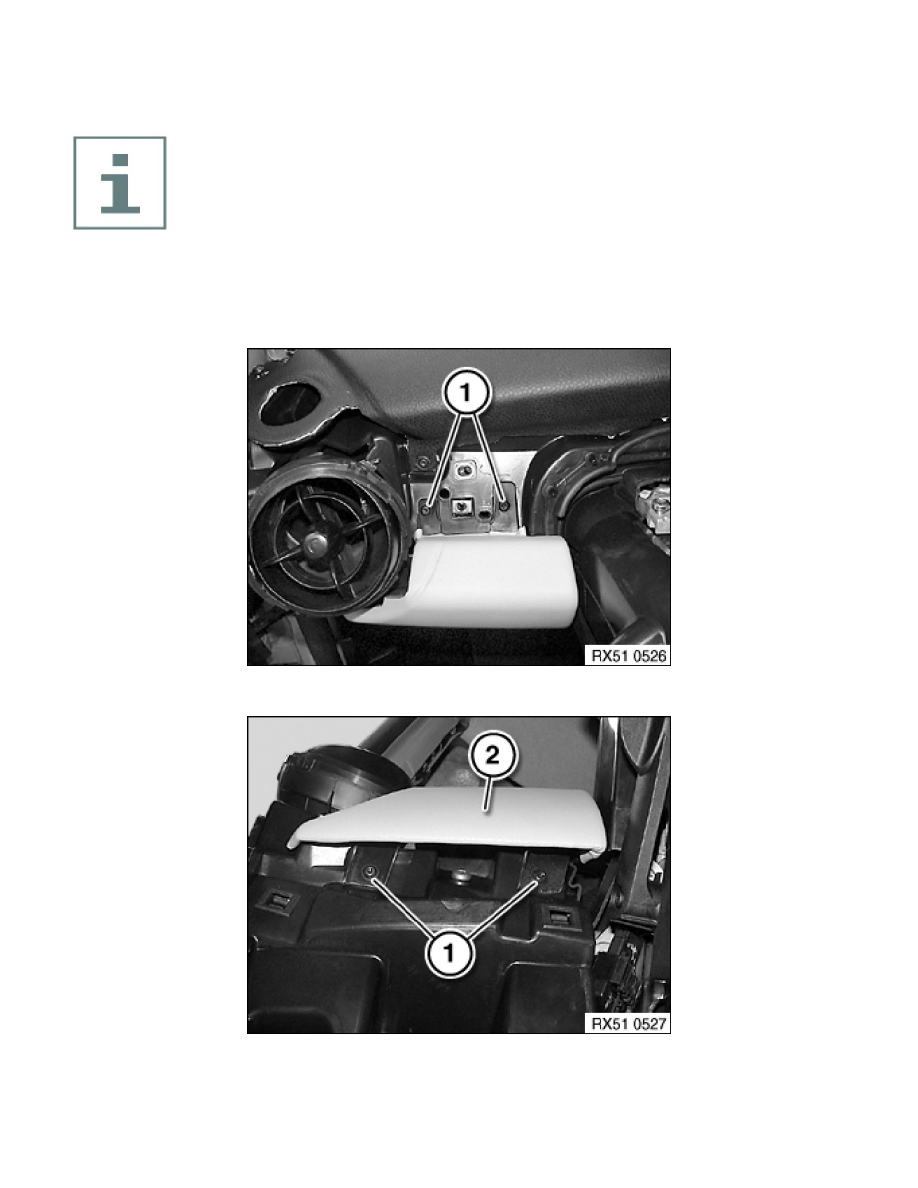

Release screws (1).
Release screws (1).
Remove knee protection (2).
