Turn nut on special tool 13 0 232 See: Tools and Equipment/Electrical / Mechanical Repair/13 0 230 Removal Tool several turns until injector has been
released from hole.
Remove special tool.
Remove injector.
The fuel injector installation procedure is described separately.
Installation:
Installation Note:
-

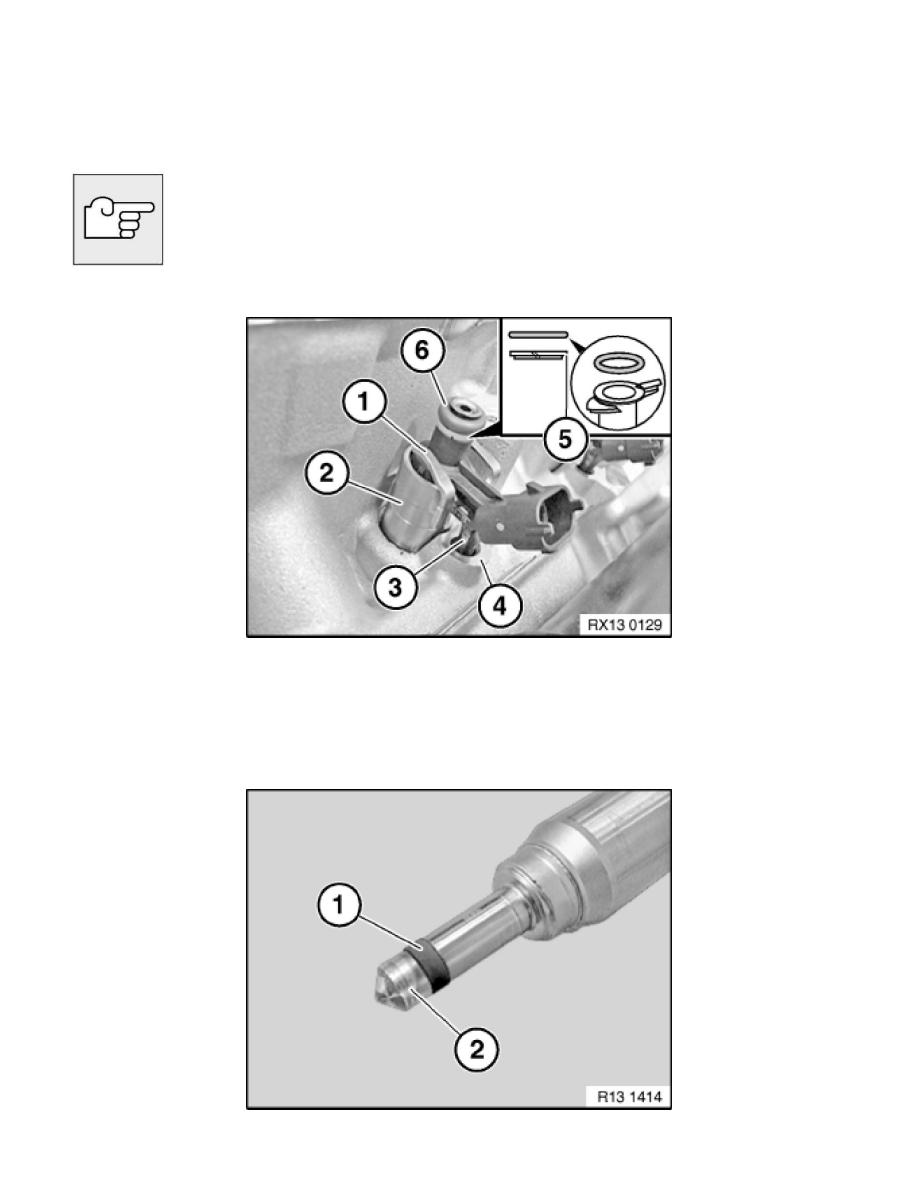

Make sure guide pin (3) of fuel injector (2) is correctly positioned in designated hole (4) in cylinder head
-
Replace seal (6) and support ring (5), making sure support ring (5) is seated correctly
-
Replace retainer (1)
-
Replace Teflon seal
Replacing Teflon sealing ring:
