Cooper S Convertible (R57) L4-1.6L Turbo (N14) (2009)

Page 1
background image

Camshaft Position Sensor: Locations
B6219 Hall-Effect Sensor, Camshaft 1

B6219 Hall-Effect Sensor, Camshaft 1

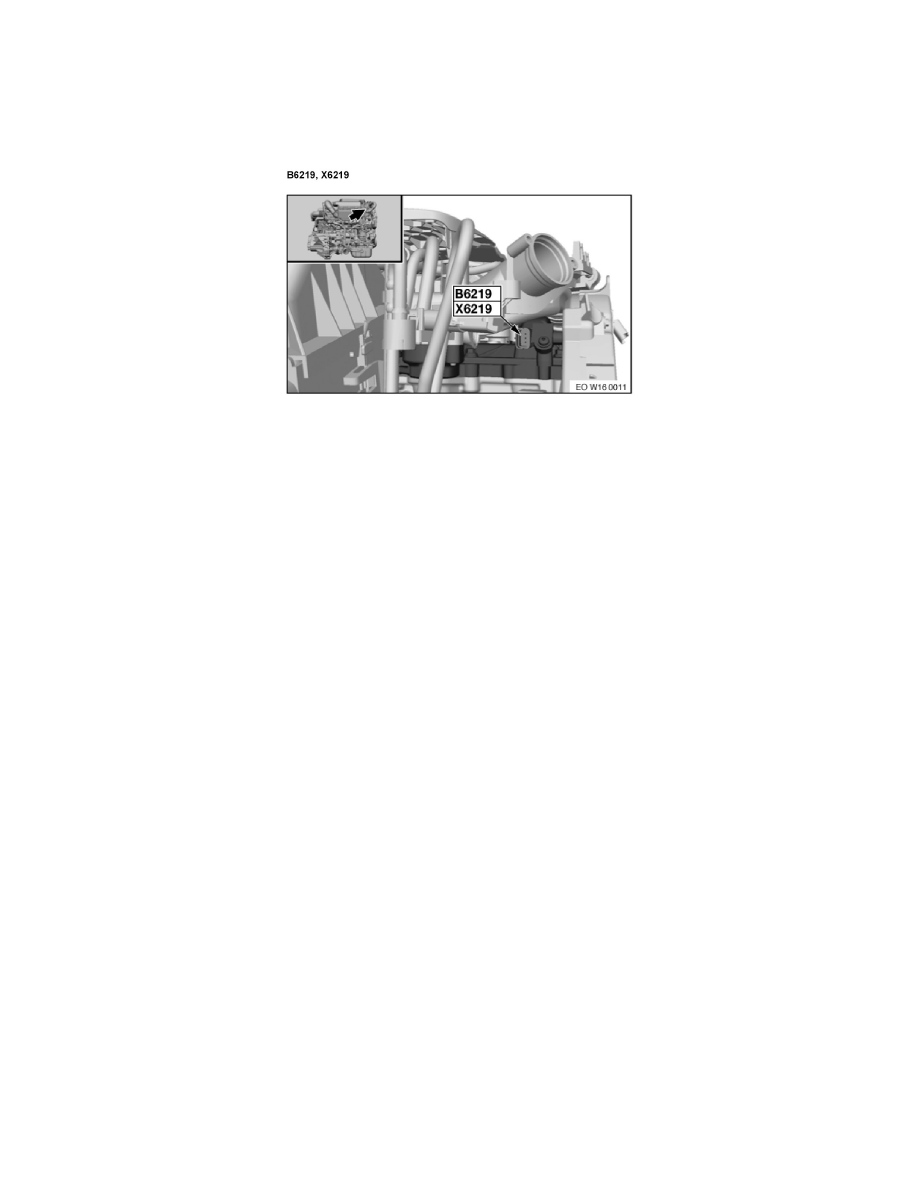

B6219, X6219 (Engine)
