Windshield Washer Pump: Testing and Inspection
Front Washer Motor Inspection

FRONT WASHER MOTOR INSPECTION

1. The front washer motor must be checked with the washer tank installed and the washer fluid filled.

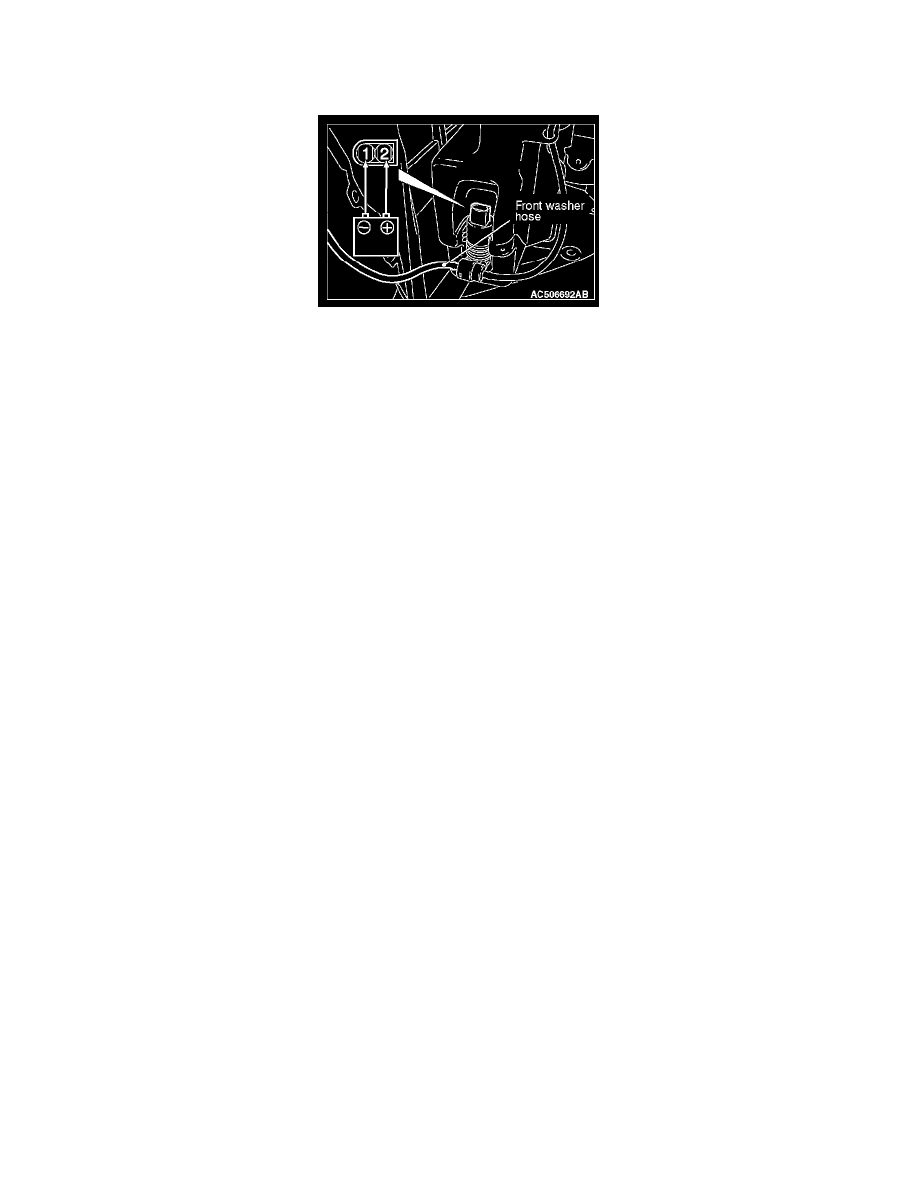

2. Connect the battery to the washer motor connector as shown. Check that the washer motor delivers washer strongly to the front washer hose side.
