Control Module: Diagram Information and Instructions

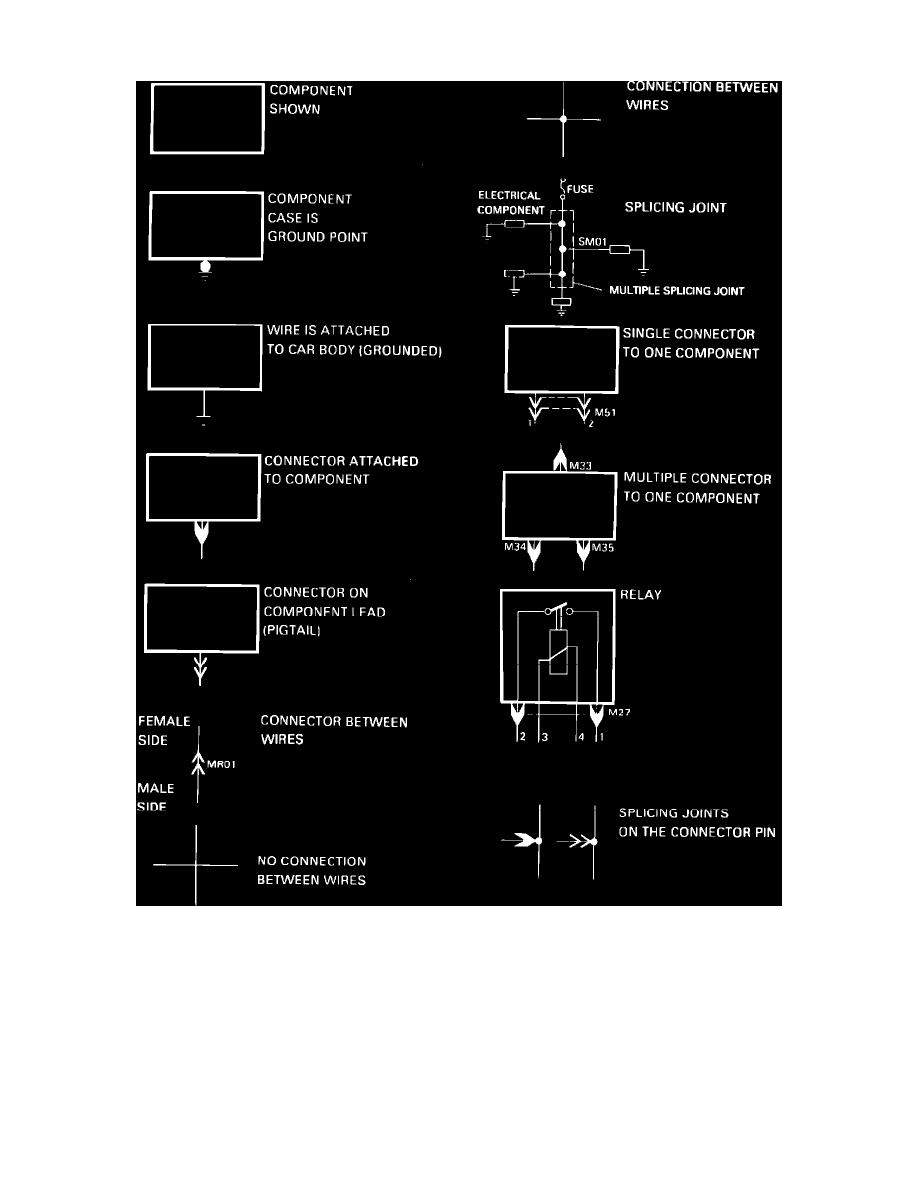

Wiring Diagram Symbol ID

Wire Color Codes

Black:  B
Blue:  L
Brown:  Br
Gray:  Gr
Green:  G
Light Blue:  Ll
Light Green:  Lg
Orange:  O
