Diagnostic Trouble Code Tests and Associated Procedures|Page 4553 > < After Engine KA24-012039|Page 4550

240SX L4-2389cc 2.4L SOHC MFI (KA24E) (1989)

Page 1
background image

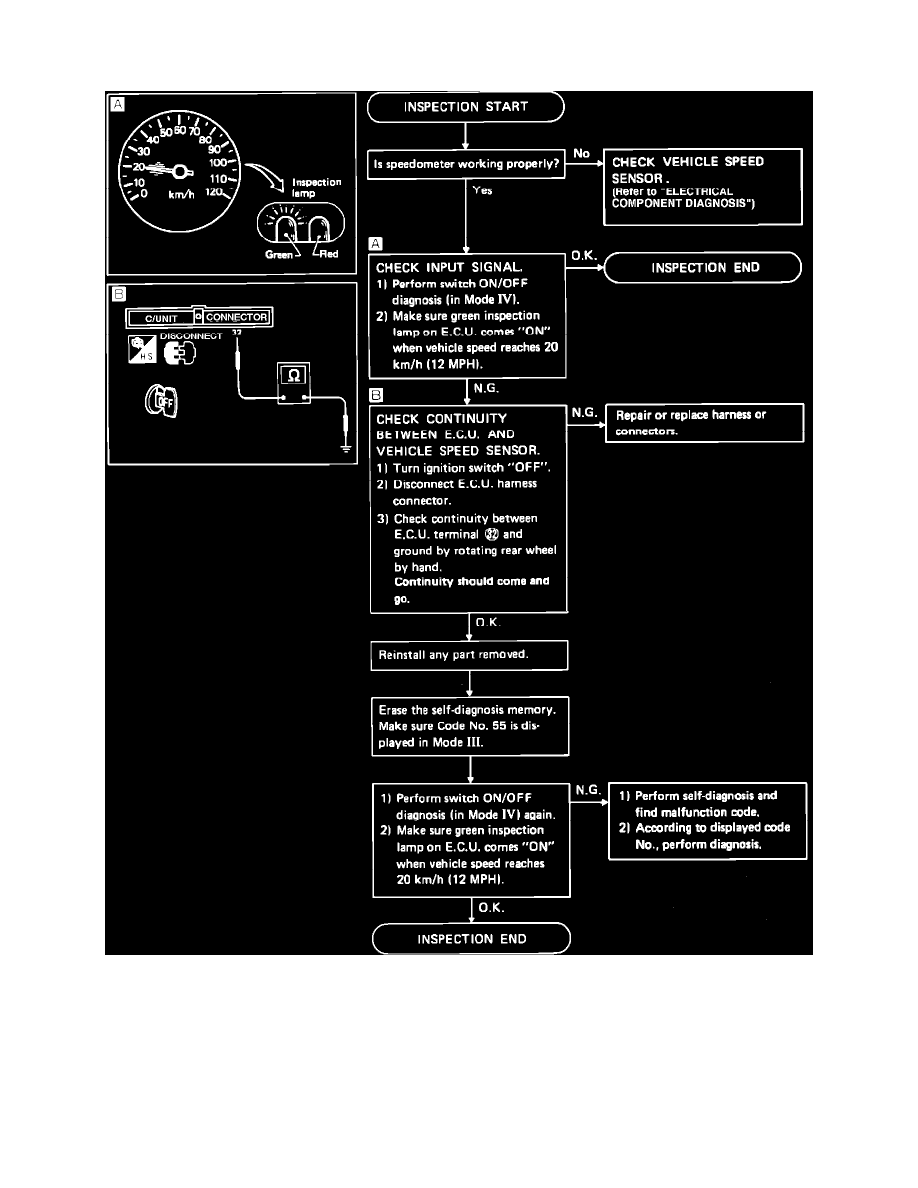

Vehicle Speed Sensor: Diagnostic Trouble Code Tests and Associated Procedures

The ECU detected an open circuit.

Code 14 - Vehicle Speed Sensor

Diagnostic Trouble Code Tests and Associated Procedures|Page 4553 > < After Engine KA24-012039|Page 4550
