240SX L4-2389cc 2.4L SOHC MFI (KA24E) (1989)

Page 1
background image

Air Flow Meter/Sensor: Locations
After Engine KA24-012039

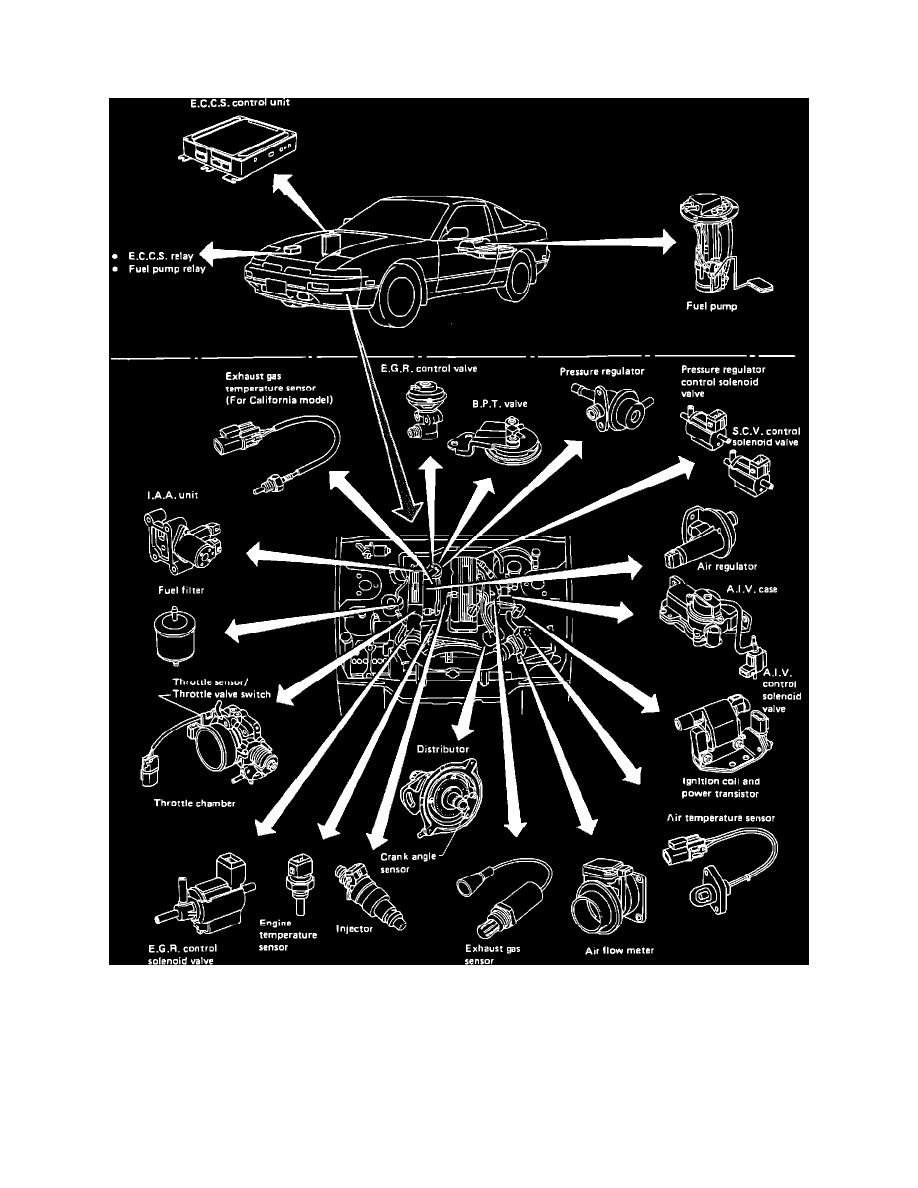

Fig 1 Component Locations
