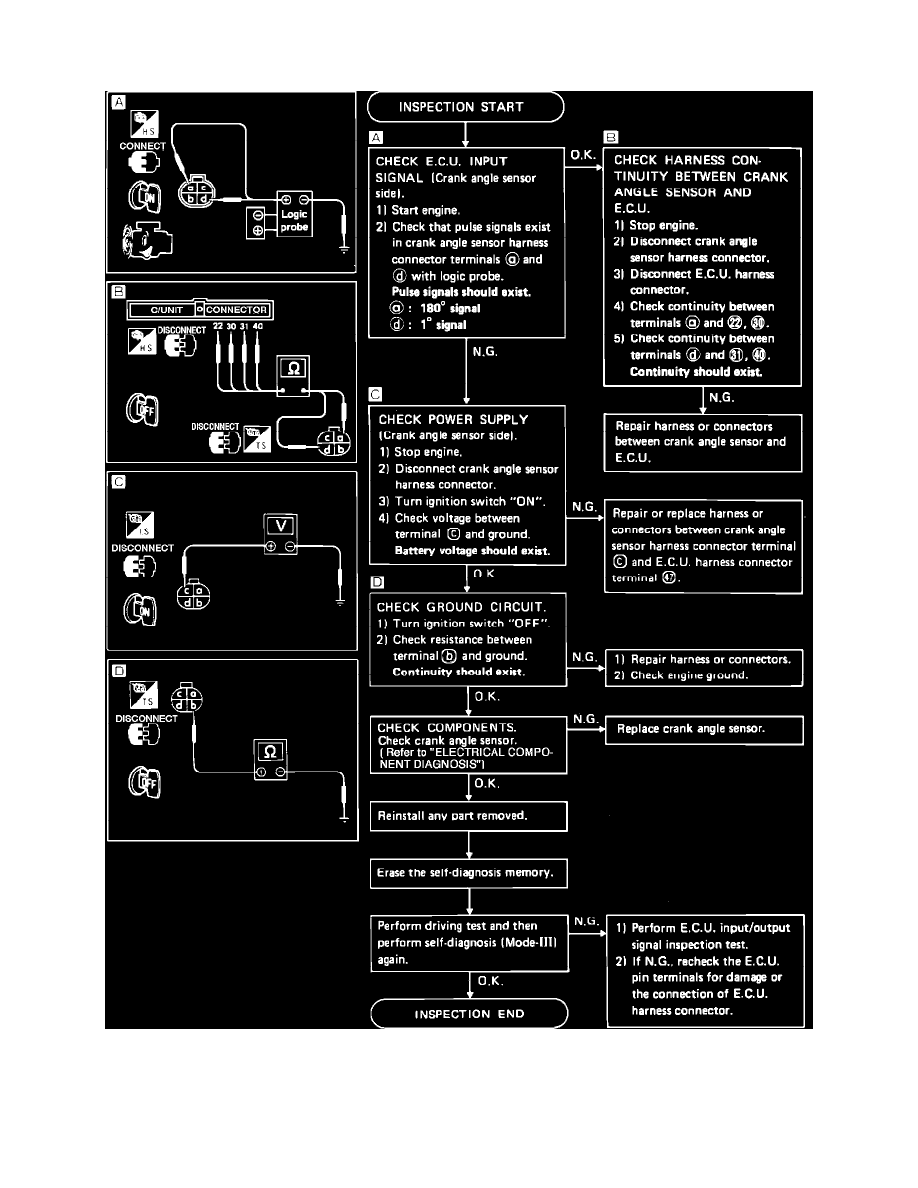

Crankshaft Position Sensor: Diagnostic Trouble Code Tests and Associated Procedures

The ECU sensed that the 1° or 180° signal was not received for the first few seconds during starting or was erratic during engine operation.

Code 11 - Crank Angle Sensor
