Crankshaft Main Bearing Seal: Service and Repair

OIL SEAL

REAR OIL SEAL : Removal and Installation

REMOVAL
1. Remove transmission assembly, refer to the following:
-

M/T models

- See: Transmission and Drivetrain/Manual Transmission/Transaxle/Service and Repair/Removal and Replacement/Transmission Assembly/Exploded
View/Without S-Mode (WITHOUT S-MODE)
- See: Transmission and Drivetrain/Manual Transmission/Transaxle/Service and Repair/Removal and Replacement/Transmission Assembly/Exploded
View/With S-Mode (WITH S-MODE)
-

A/T models

- See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Service and Repair/Removal and Replacement/Transmission
Assembly/Exploded View
2. Remove drive plate (A/T models) or fly wheel (M/T models).  See: Cylinder Block Assembly/Service and Repair/Exploded View.

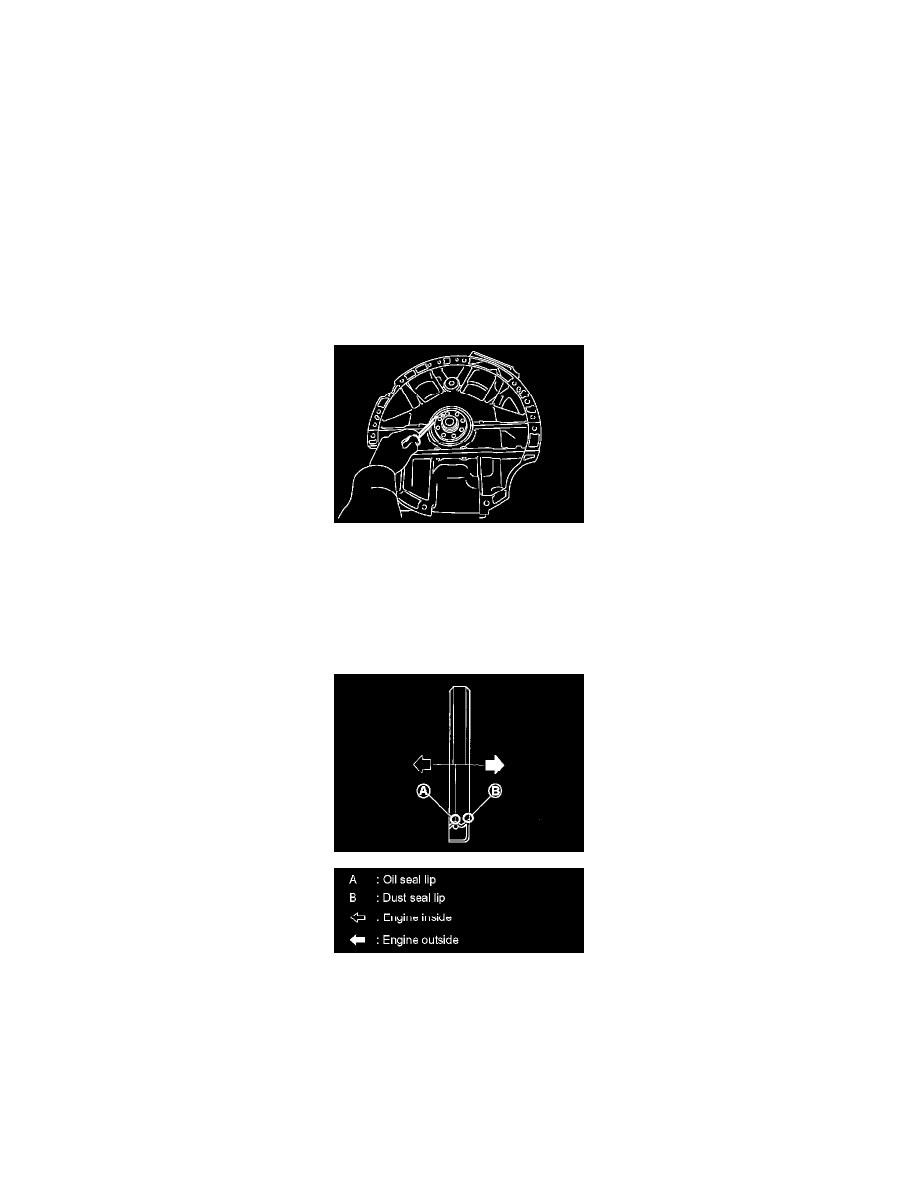

3. Remove rear oil seal with a suitable tool.

CAUTION:
Be careful not to damage crankshaft and cylinder block.

INSTALLATION
1. Install rear oil seal.

-

Install rear oil seal so that each seal lip is oriented as shown in the figure.
