Vacuum Cut Valve <--> [Leak Detection Valve, Evaporative System]|Diagrams > < Diagram Information and Instructions|Page 5820

D21 Hardbody SE King Cab 4WD L4-2389cc 2.4L SOHC MFI (KA24E) (1997)

Page 1
background image

Vacuum Cut Valve: Locations

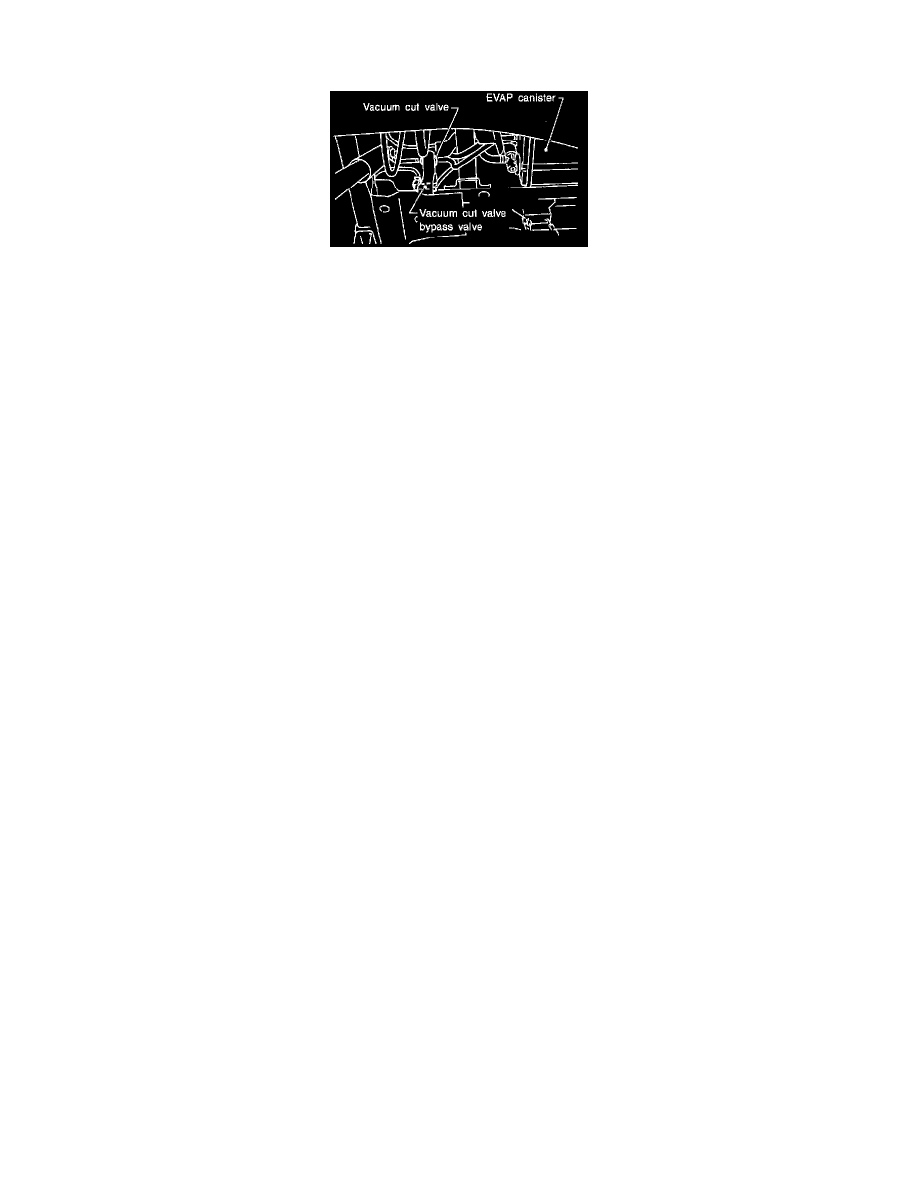

COMPONENT LOCATION

The vacuum cut valve and vacuum cut valve bypass valve are installed in parallel on the EVAP purge line between the fuel tank and the EVAP
canister.
