Workshop Manuals Factory service & repair Nissan and Datsun
Nissan and Datsun Pathfinder LE 2WD V6-3.5L (VQ35) (2001)05 · Powertrain Management
05 · Diagnostics

Engine Controls - ECM Programming Interruption Recovery (Engine Control Module) (page 15 of 15)

Make
Nissan and Datsun
Model
Pathfinder LE 2WD
Engine
V6-3.5L (VQ35)
Year
2001
Section
10-078 › Jun › 10
Powertrain ManagementEngine Controls - ECM Programming Interruption Recovery · page 15 of 15

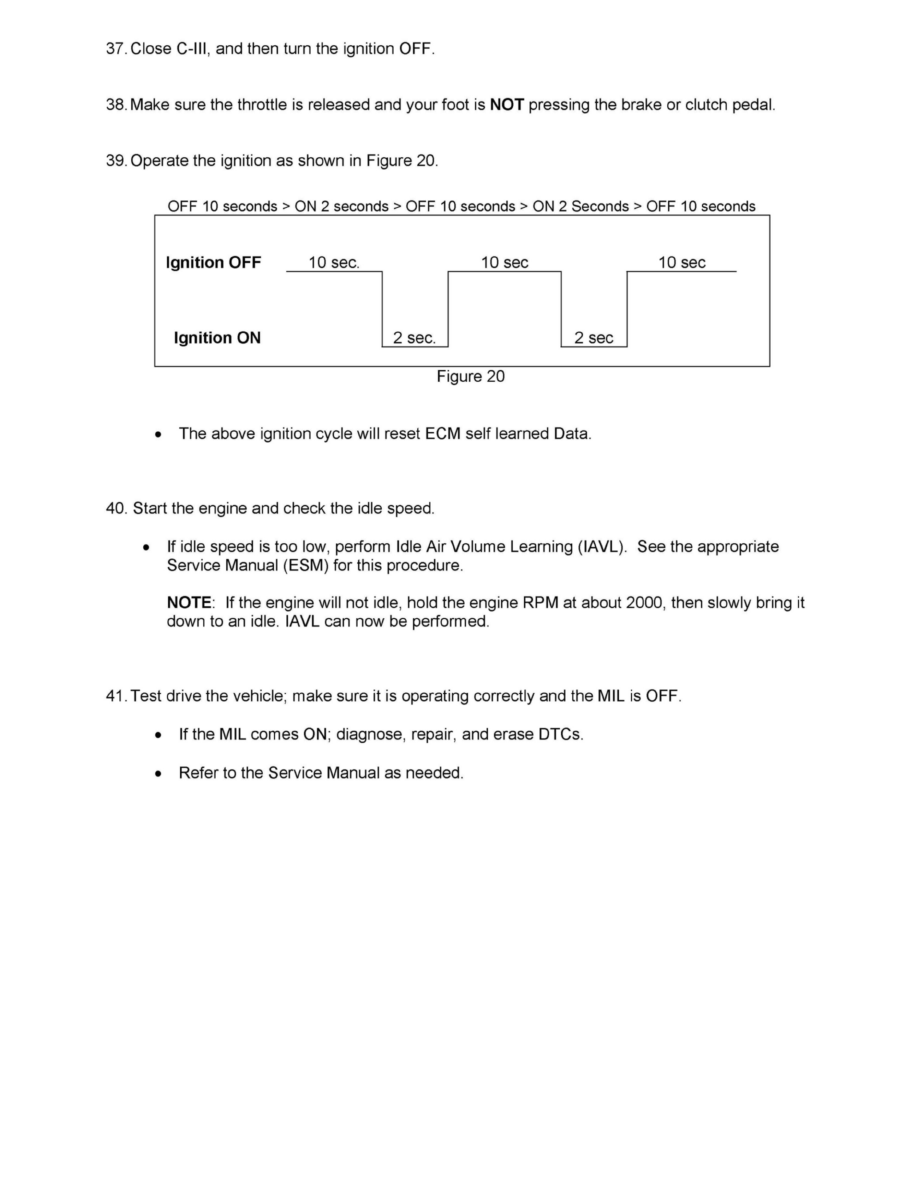

Engine Controls - ECM Programming Interruption Recovery (Engine Control Module) (page 15 of 15) – diagram from the Powertrain Management chapter of the Nissan Pathfinder LE 2WD V6-3.5L (VQ35) (2001) factory manual.

Diagram: Engine Controls - ECM Programming Interruption Recovery (Engine Control Module) (page 15 of 15) – Nissan Pathfinder LE 2WD V6-3.5L (VQ35) (2001)

Attachment General Procedure
