PL720 2WD L4-2488cc 2.5L DSL (SD25) (1985)

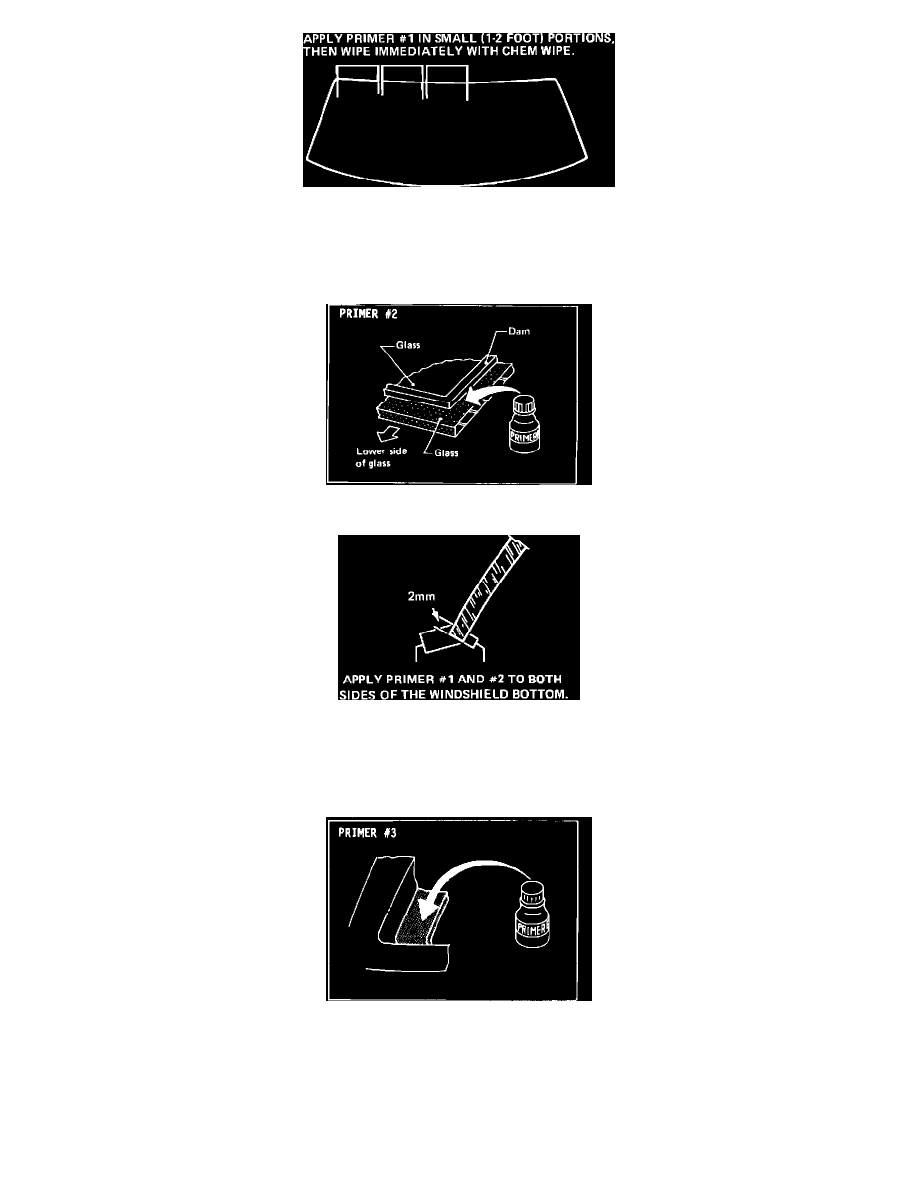

FIGURE 4
6.
Using the wool dabber, apply Cleaner-primer bottle # 1 around the windshield edge Figure 4. The primer sets very quickly and must be wiped off
while still wet (within seconds of application). Do only 1 or 2 feet of the windshield edge at a time, then quickly wipe clean with the chem wipe
provided in the kit. DO NOT touch after cleaning.
FIGURE 5A
FIGURE 5B
7.
Using the small brush in the kit, apply primer bottle # 2 to the top and side windshield edges and lower surfaces (Figure 5a),and to both sides of
the lower edge as indicated (Figure 5b).
CAUTION: Let primer dry, DO NOT touch primed surfaces.
FIGURE 6
8.
Using the second small brush in the kit, apply primer bottle # 3 to the body/paint surface at the areas indicated (Figure 6).
CAUTION:
Let dry for 15 minutes. Do not touch primed surfaces.
