Page 9

background image

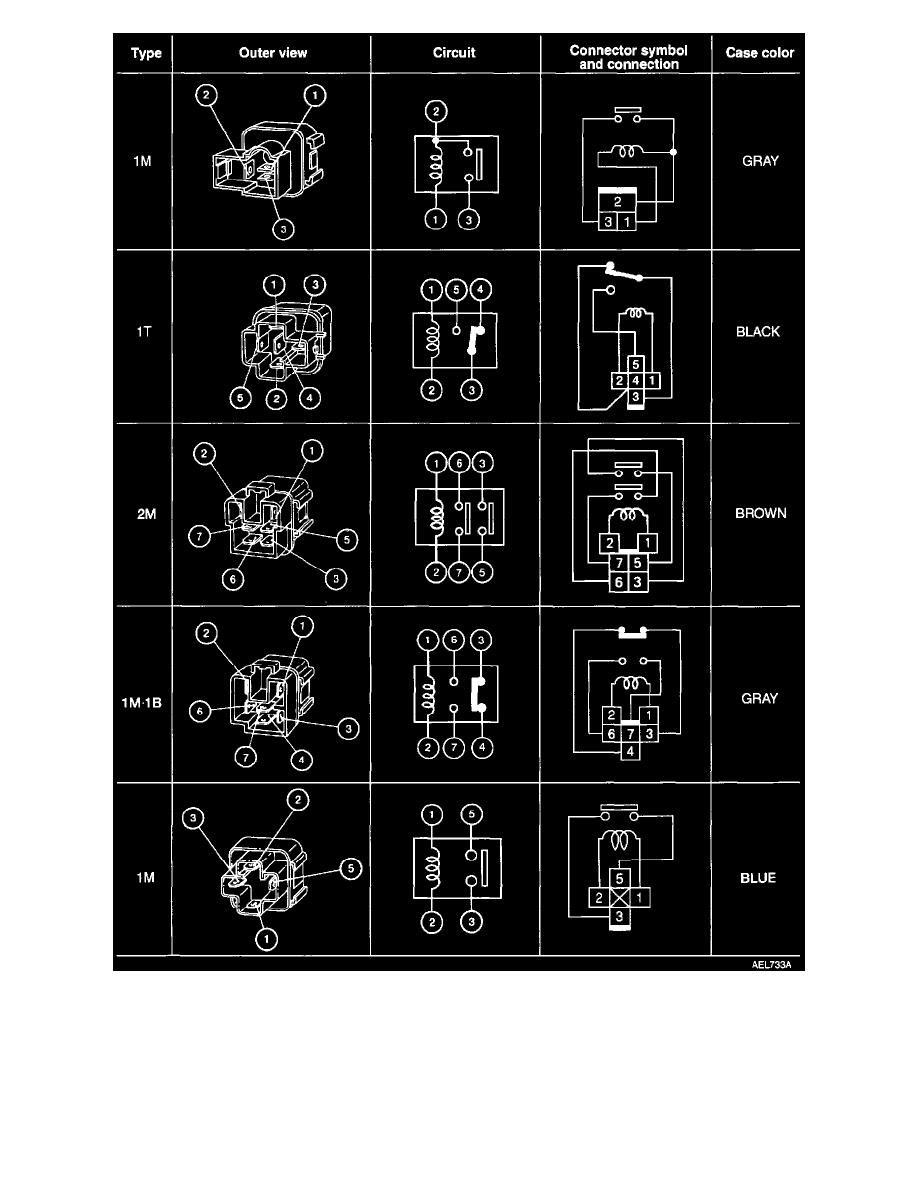

Type Of Standardized Relays (Part 2 Of 2)

Powertrain Management
Fuel Delivery and Air Induction
Closed Throttle Position Switch <--> [Throttle Full Close Switch] / Diagrams / Diagram Information and Instructions
Page 6924
