Shift Solenoid: Service and Repair

Control Valve Assembly and Accumulators
REMOVAL

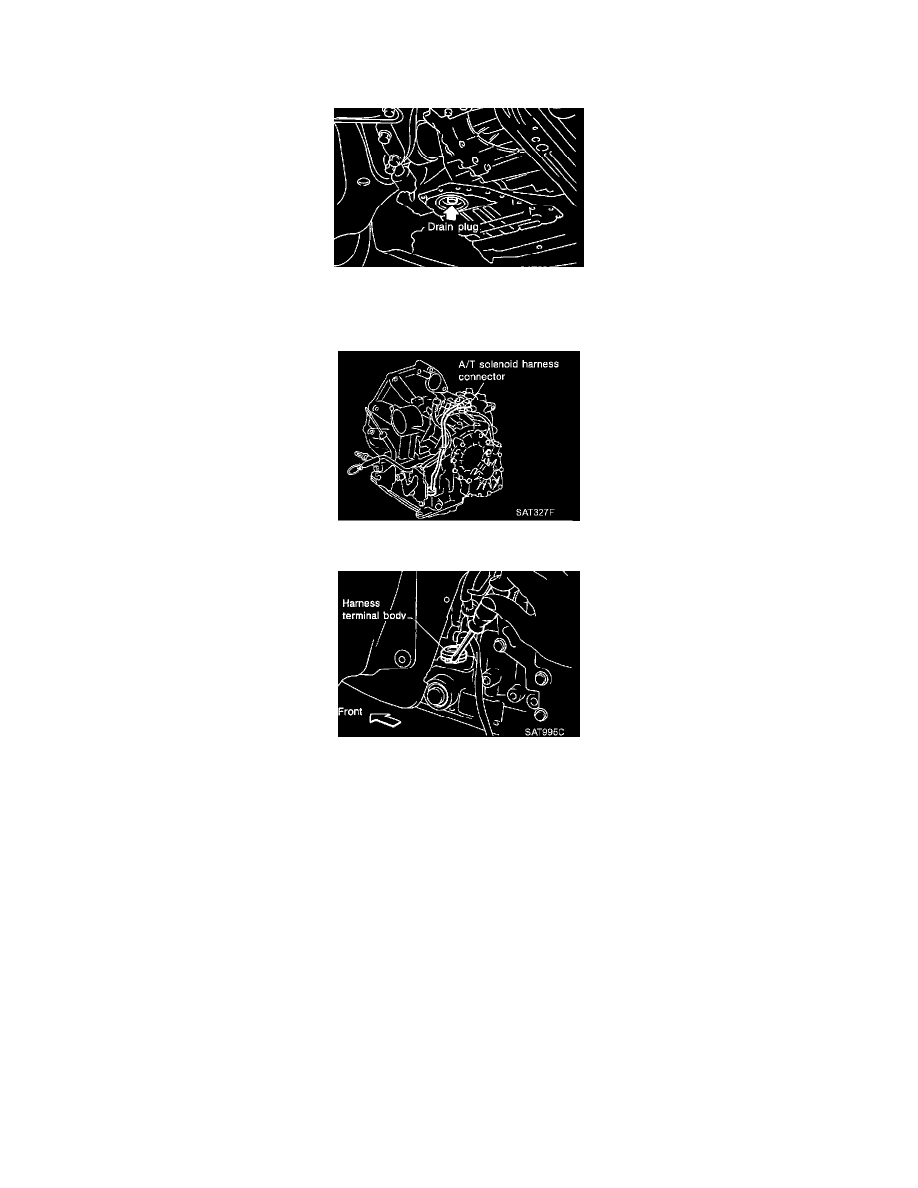

1. Drain ATF from transaxle.
2. Remove oil pan and gasket.

-

Always replace oil pan bolts as they are self-sealing bolts.

3. Disconnect A/T solenoid harness connector.

4. Remove snap ring from terminal cord assembly harness terminal body.
5. Remove terminal cord assembly harness from transmission case by pushing on terminal body.
