Versa L4-1.6L (HR16DE) (2010)

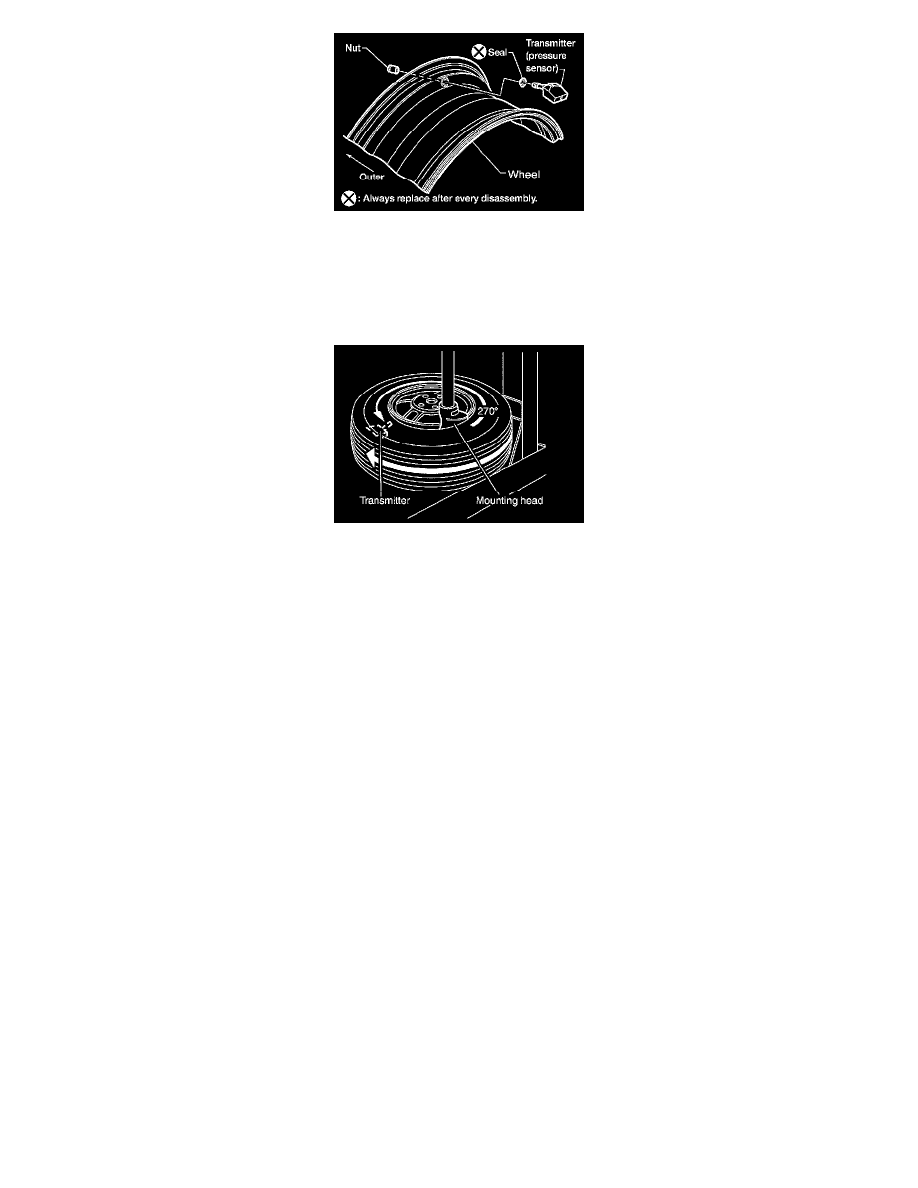

3. Mount transmitter on rim and tighten nut.
NOTE:
Make sure no burrs exist in the valve stem hole of the wheel.
Transmitter nut : 7.7 N.m (0.79 kg-m, 68 in-lb)
4. Place wheel on turntable of tire machine. Ensure that transmitter is 270 degrees from mounting/dismounting head.
NOTE:
Do not touch transmitter with mounting head.
5. Lubricate tire well, and install second side of tire as normal.
Ensure that tire does not rotate relative to rim.
6. Inflate tire and balance the wheel and tire assembly. See: Maintenance/Wheels and Tires/Service and Repair/Adjustment.
7. Install wheel and tire assembly in appropriate wheel position on vehicle. See: Maintenance/Wheels and Tires/Service and Repair/Adjustment.
NOTE:
If replacing the transmitter, then transmitter wake up operation must be performed. See: Testing and Inspection/Programming and
Relearning/Transmitter Wake Up Operation.
