Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LAMP

Bulb Replacement

1. Turn lighting switch OFF.
2. Partially remove the fender protector (front) to obtain work space between the fender protector and fender.

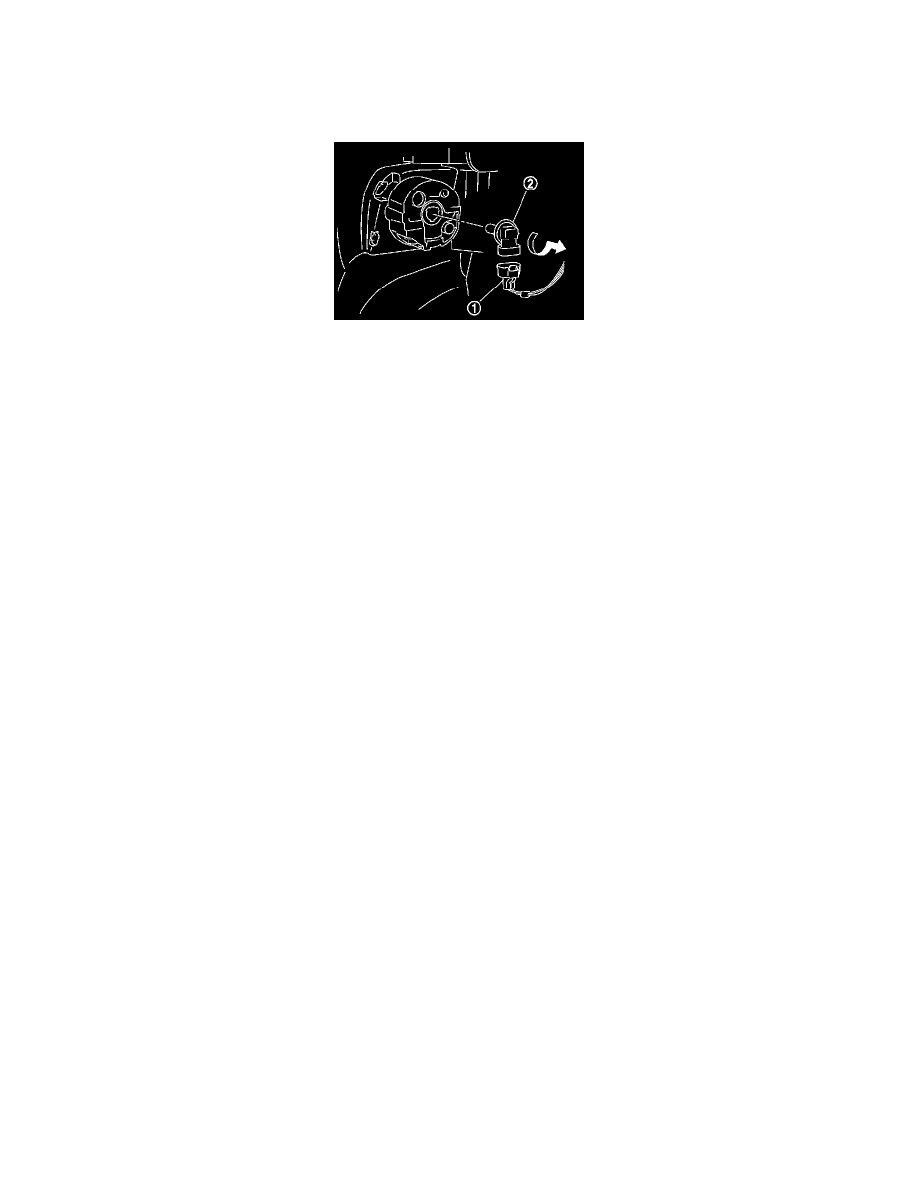

3. Disconnect front fog lamp connector (1).
4. Turn bulb socket (2) counterclockwise unlock and remove it.
5. Remove bulb from its socket.
