Versa L4-1.6L (HR16DE) (2010)
/Page-1239001.png)
Horn Relay: All Technical Service Bulletins
Electrical - Vehicle Horn Is Inoperative
Classification: EL11-003
Reference: NTB11-018
Date: February 25, 2011
VERSA; HORN DOES NOT WORK
APPLIED VEHICLE: 2009-2011 Versa (C11)
IF YOU CONFIRM:
The horn does not sound when the horn switch (Driver Airbag Module) is depressed.
ACTION:

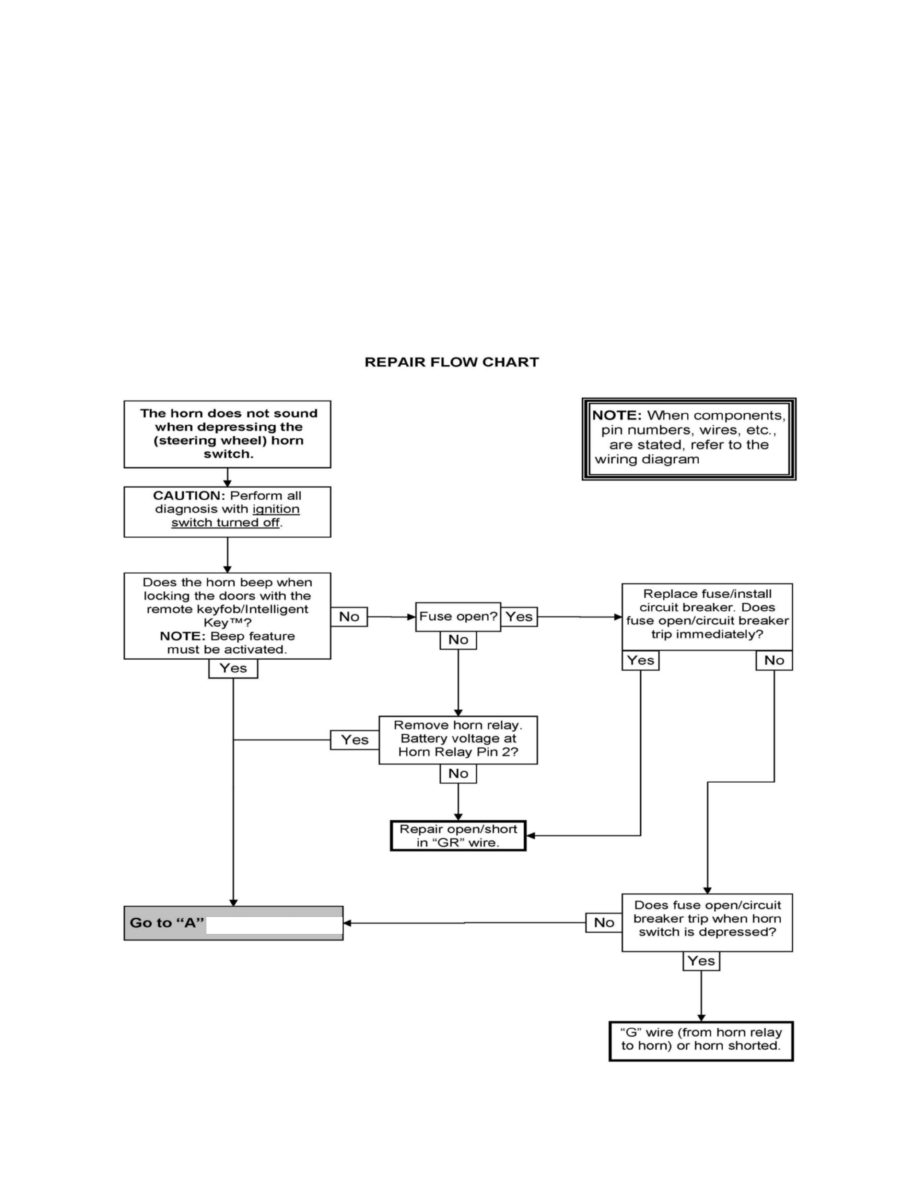

Refer to the REPAIR FLOW CHART.
IMPORTANT:
