Versa L4-1.6L (HR16DE) (2010)
Headlamp Control Module: Technical Service Bulletins
Lighting - Xenon Headlamp Service Info.
Classification: EL10-021A
Reference: NTB10-061A
Date: June 29, 2010
XENON HEAD LAMP SERVICE
This bulletin has been amended. The Parts Information has been updated. Please discard previous versions of this bulletin.
APPLIED VEHICLES: 2005 - 2010 Nissan with xenon headlamps
IF YOU CONFIRM
A xenon headlamp is not functioning because of an issue inside the headlamp assembly (an internal issue),
ACTION
Refer to the appropriate Service Manual, follow the diagnostic and repair information for xenon headlamps.
NOTE:
^ In most cases, replacement of a bulb or HID control unit will solve the incident.
^ Do not replace the entire xenon headlamp assembly when a bulb or HID control unit is available to solve the incident, if one should occur.
CLAIMS INFORMATION
^ Reference the current Nissan Flat Rate Manual and use the appropriate claims coding for the repair performed.
^ For HID control unit replacement, use Operation Code RJ36AA.

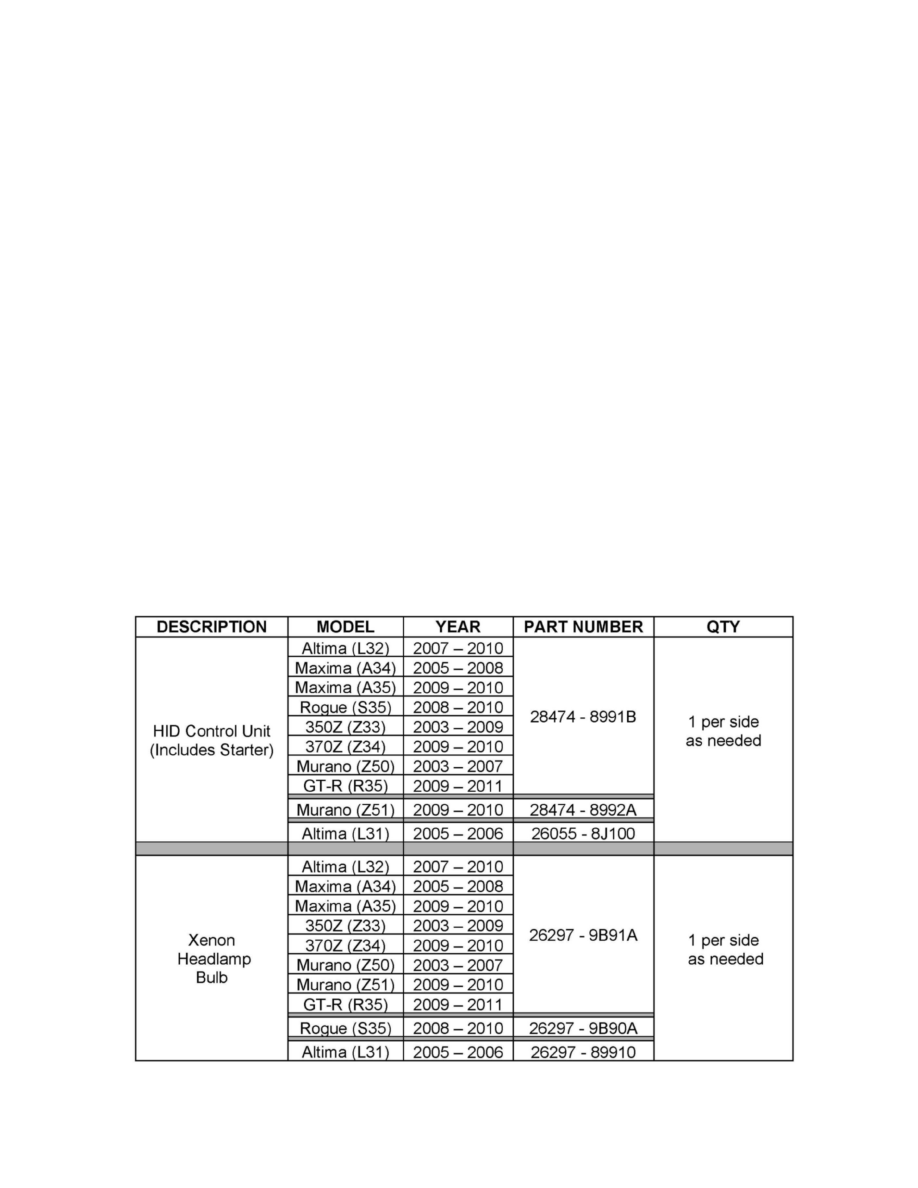

PARTS INFORMATION
