Achieva V6-3100 3.1L MFI VIN M (1994)

Page 3
background image

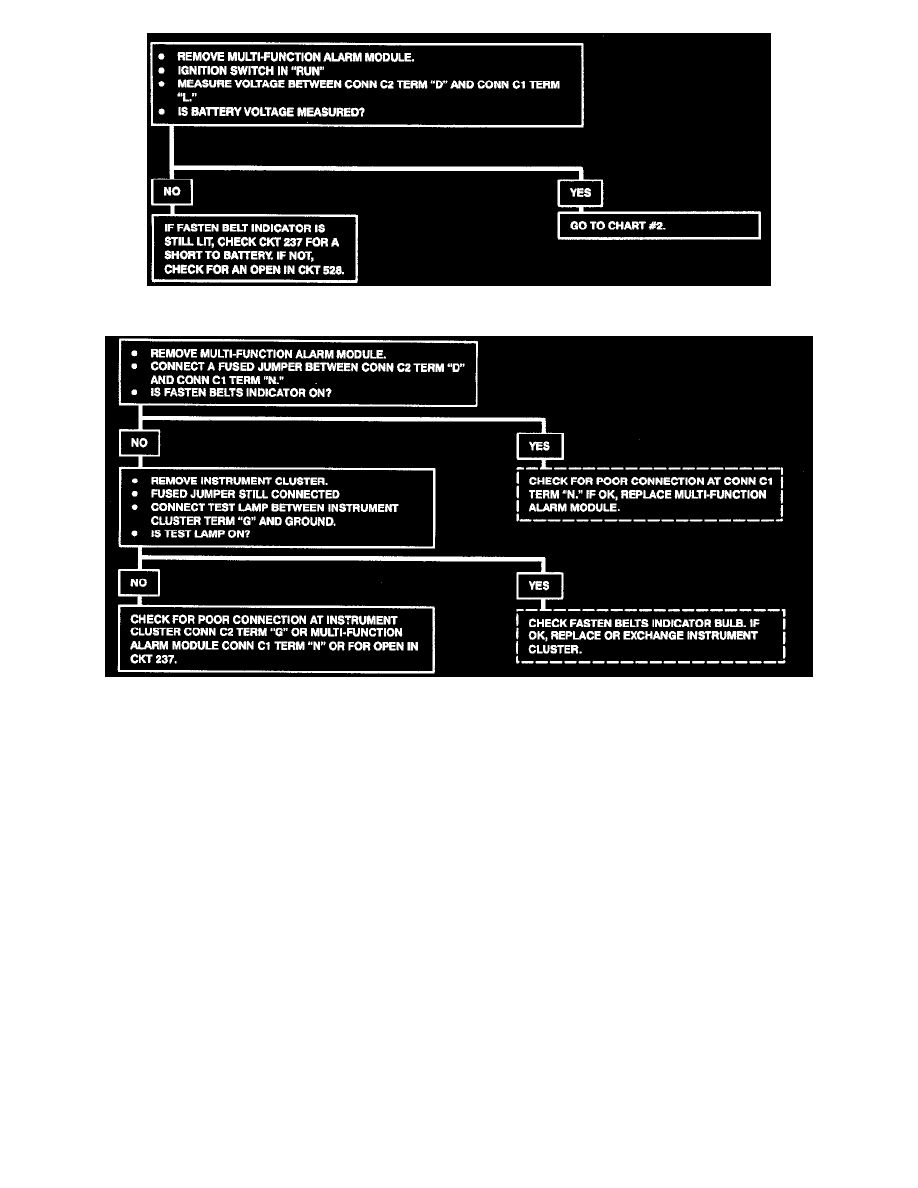

Chart 4: Fasten Belts On Indicator On Continuously

Chart 5: Fasten Belts Indicator Does Not Light, But Fasten Belts Chime Operates Properly
