Achieva V6-3100 31L MFI VIN M (1994) Instrument Panel, Gauges, and Warning Indicators
CAUTION: Fusible links cut longer than 225 mm (approx 9 in.) will not provide sufficient overload protection.

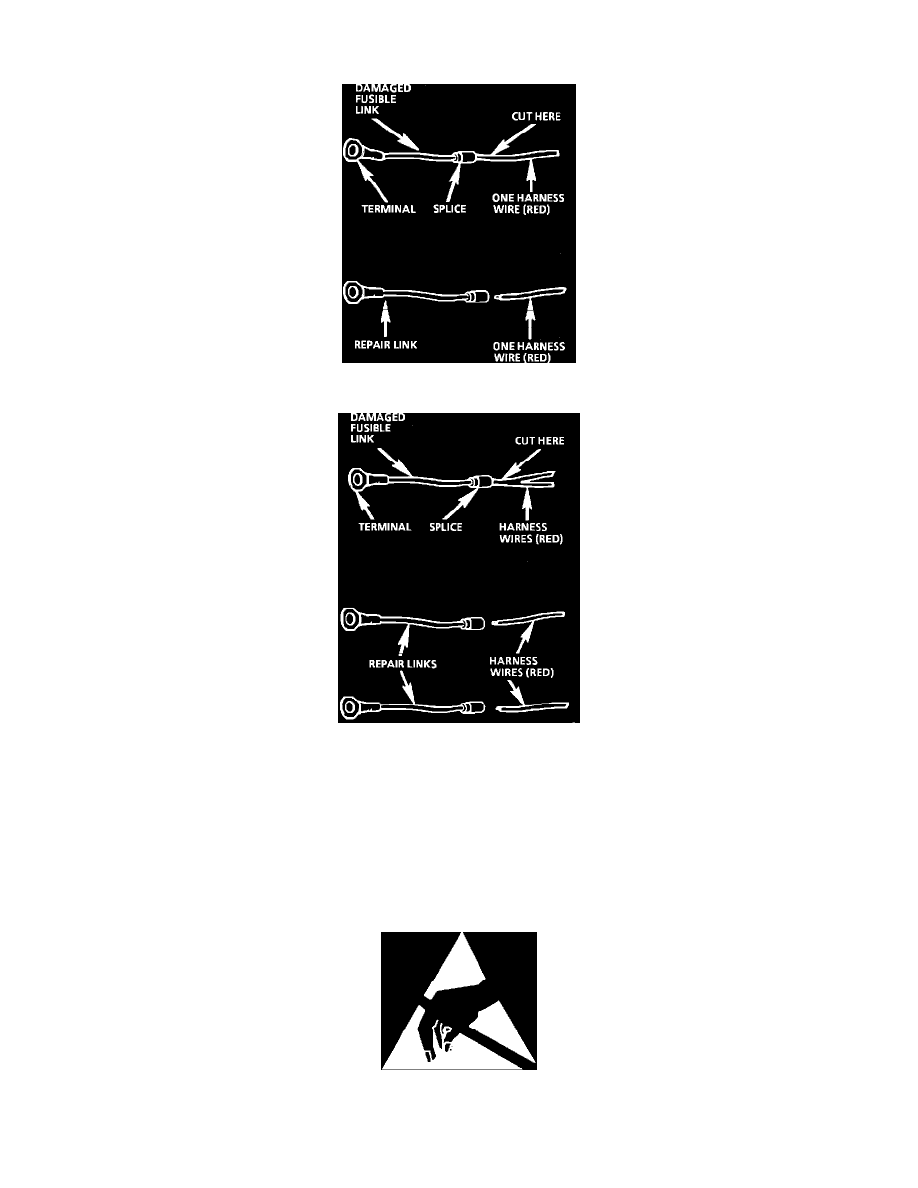

Fig. 4 Single Wire Feed Fusible Link
Fig. 5 Double Wire Feed Fusible Link
To replace a damaged fusible link, Fig. 4, cut it off beyond the splice. Replace with a repair link. When connecting the repair link, strip wire and
use staking-type pliers to crimp the splice securely in two places. For more details on splicing procedures, see Diagnostic Aids/Connector and
Wire Repair. Use Crimp and Seal splices whenever possible.
To replace a damaged fusible link which feeds two harness wires, cut them both off beyond the splice. Use two repair links, one spliced to each
harness wire, Fig. 5.
Handling and Measuring Procedures
Fig. 1 ESD Symbol
