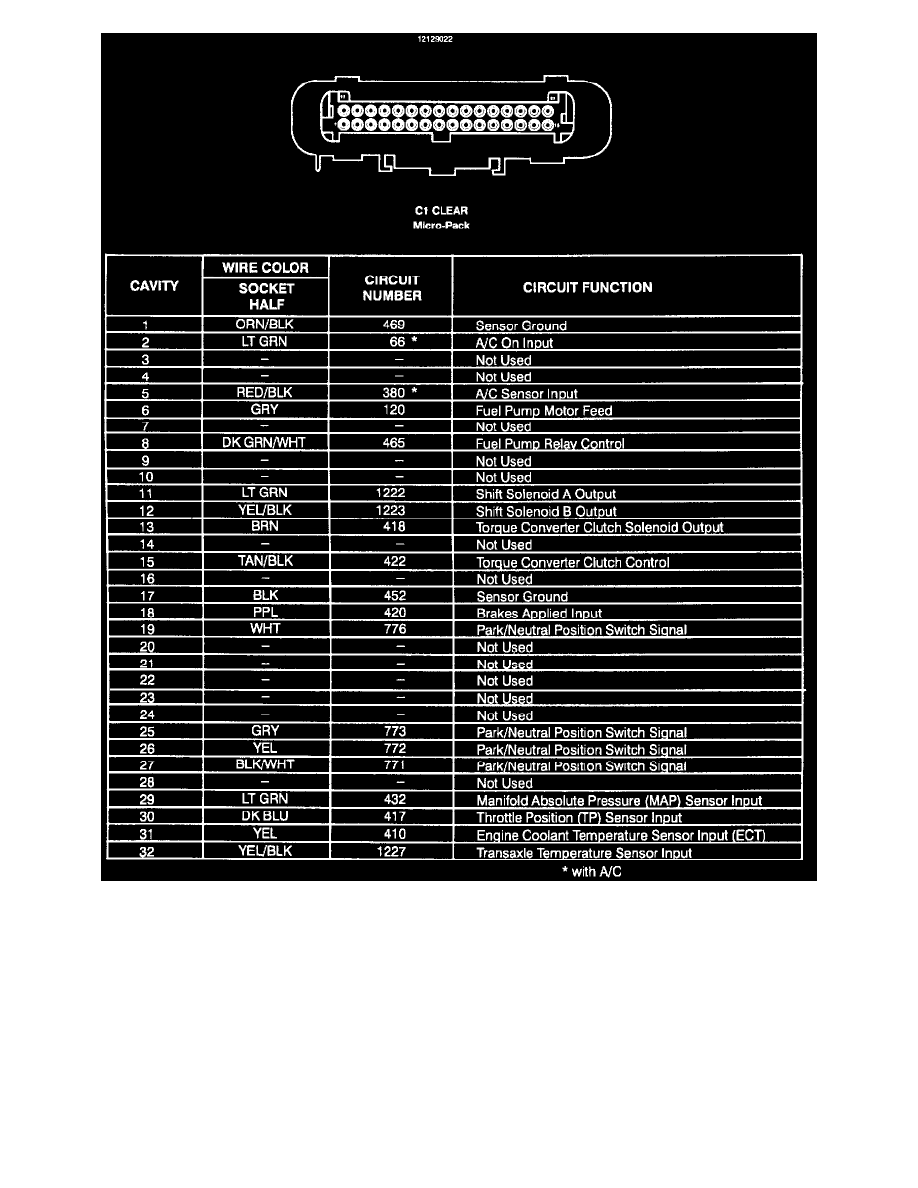

ECM Connector: C1

Powertrain Management
Computers and Control Systems
Engine Control Module / Component Information
Diagrams
Connector C1
