Page 4

background image

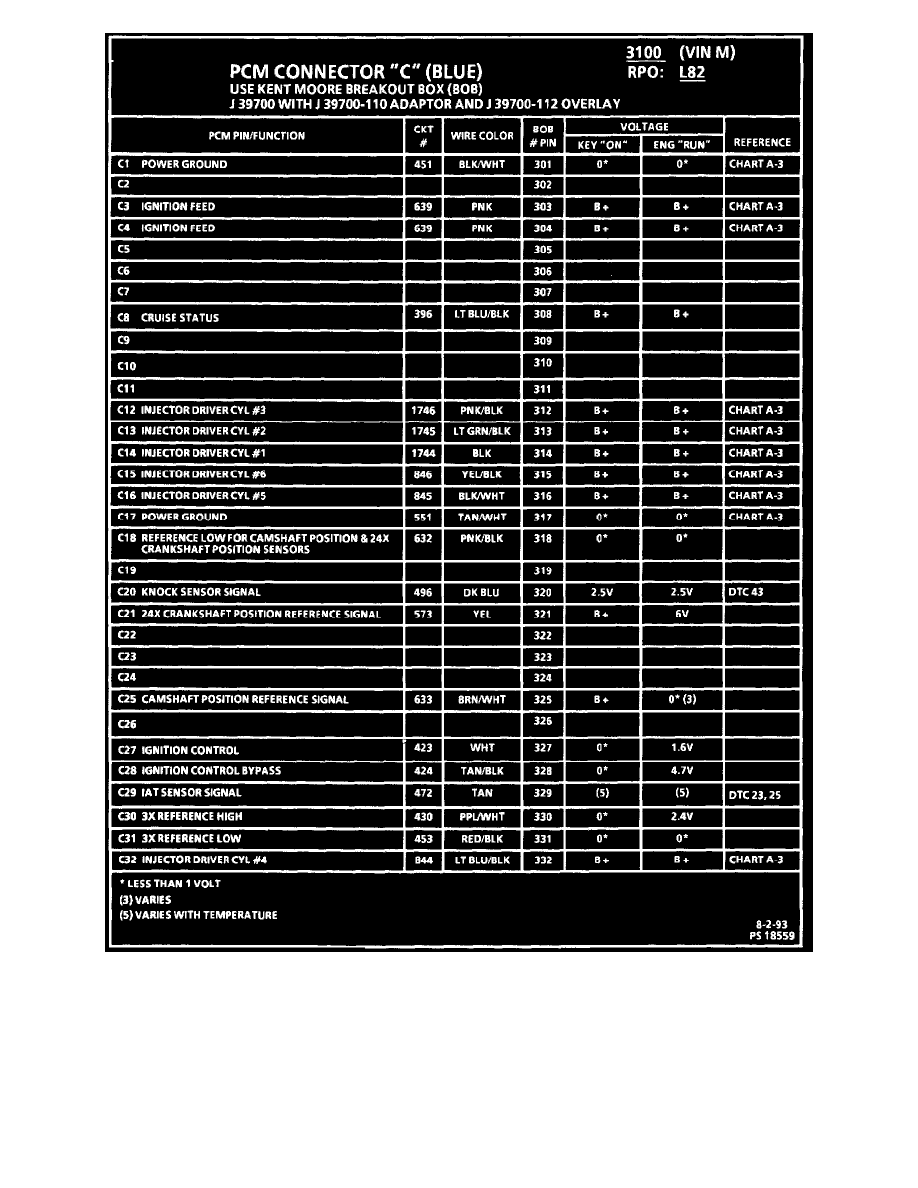

PCM Connector ID (2 Of 2)

Powertrain Management
Computers and Control Systems
Relays and Modules - Computers and Control Systems / Engine Control Module / Component Information
Diagrams / Connector C1
Page 3567
